Engine Control System - 2.4L
›
Components and Components Location
›
Component location
Component location

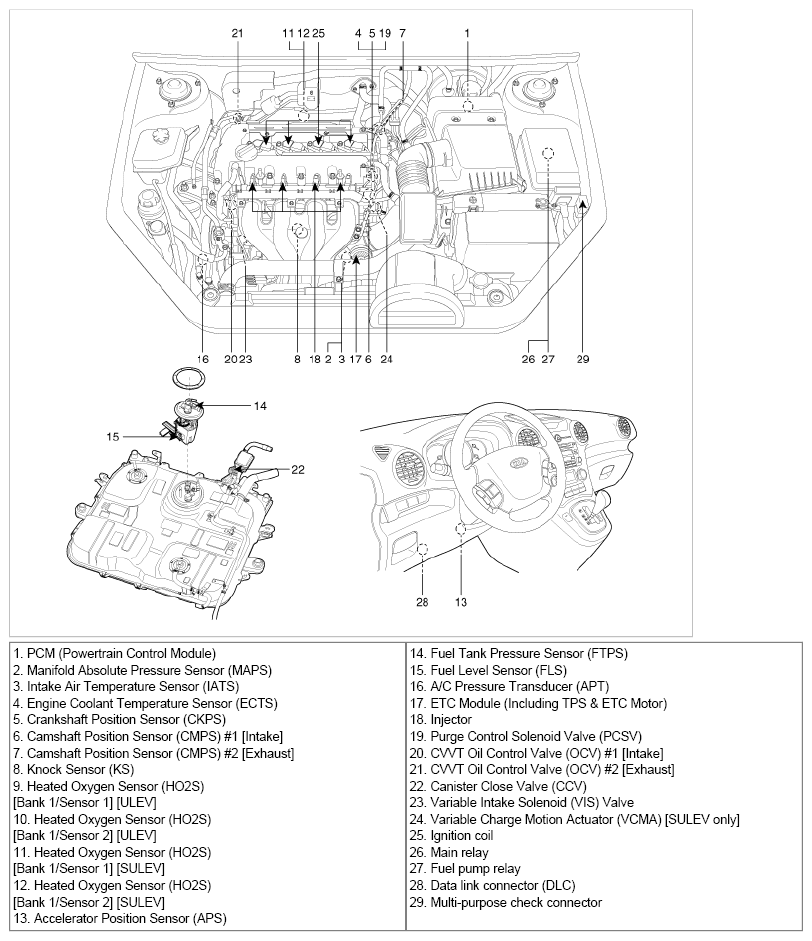

Fig 1: Locating Fuel System Components (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

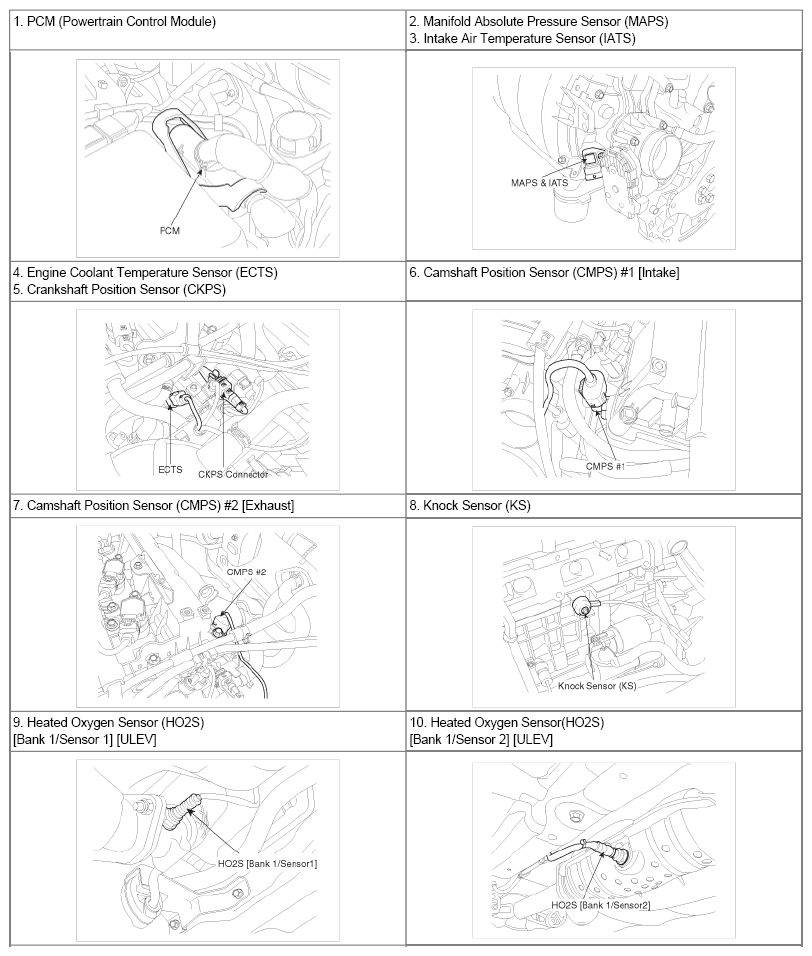

Fig 2: Locating Fuel System Components (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

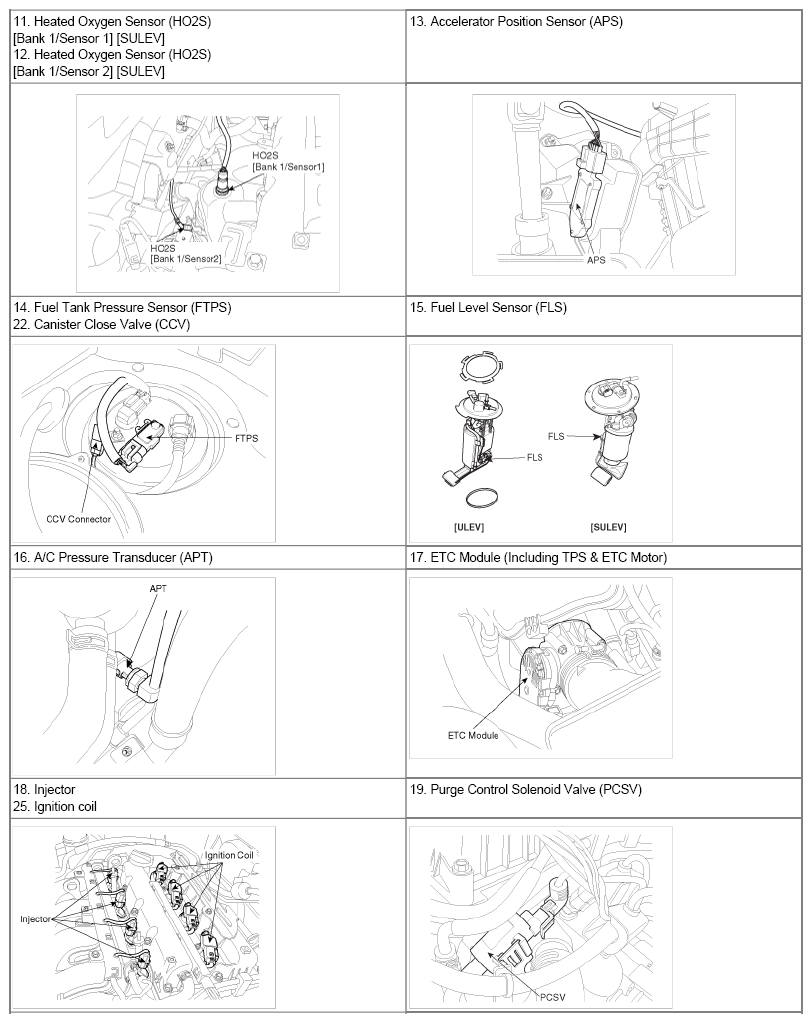

Fig 3: Locating Fuel System Components (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

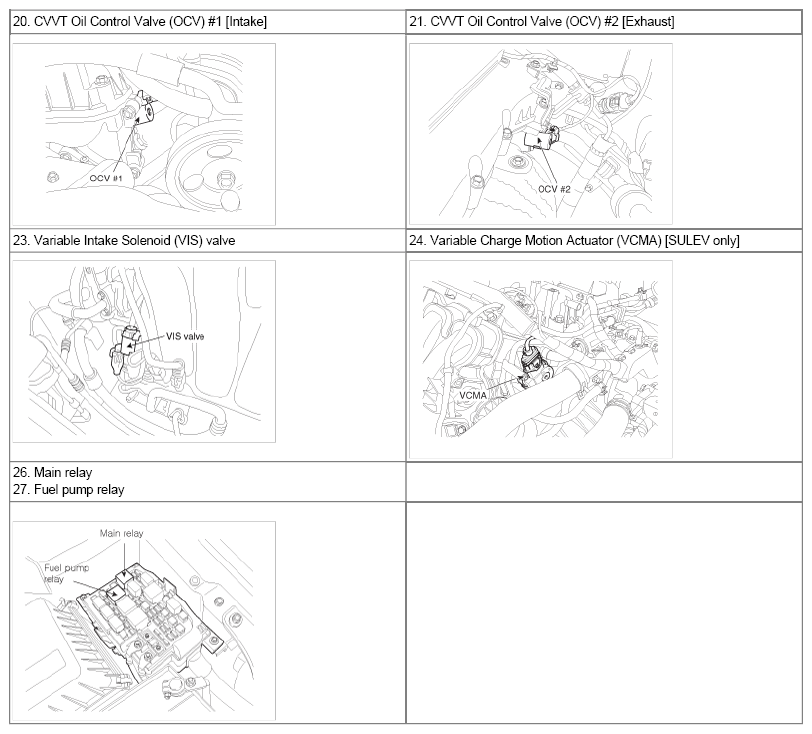

Fig 4: Locating Fuel System Components (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
