Rondo EX, 2.4 8
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 2.4L
›
Knock Sensor (KS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

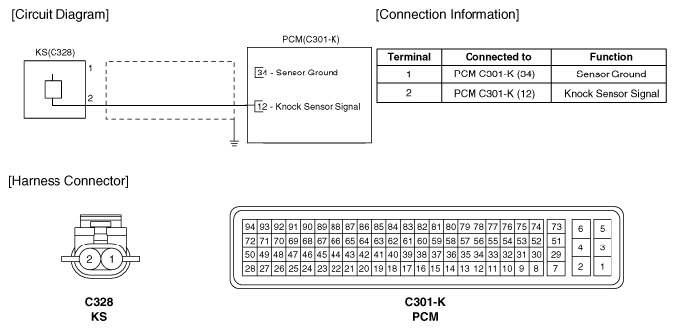

Fig 1: Knock Sensor Circuit Diagram
