Engine Control System - 2.4L
›
Powertrain Control Module (PCM)
›
Schematic Diagrams
›
Circuit diagram
Circuit diagram

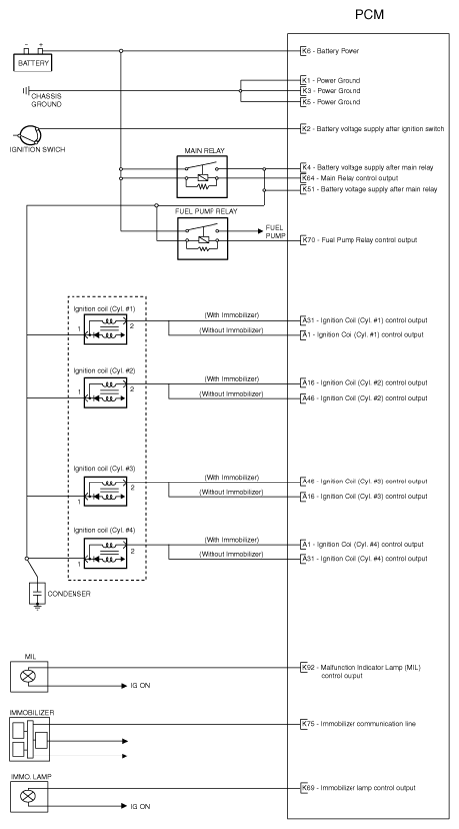

Fig 1: PCM Harness Connector Circuit Diagram (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

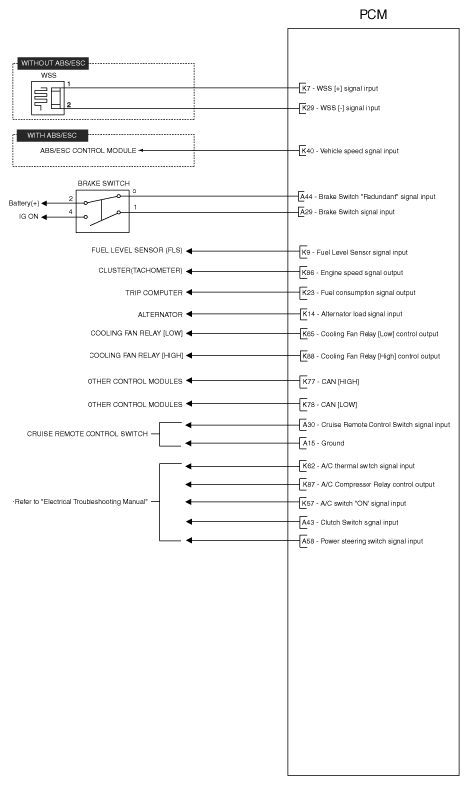

Fig 2: PCM Harness Connector Circuit Diagram (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

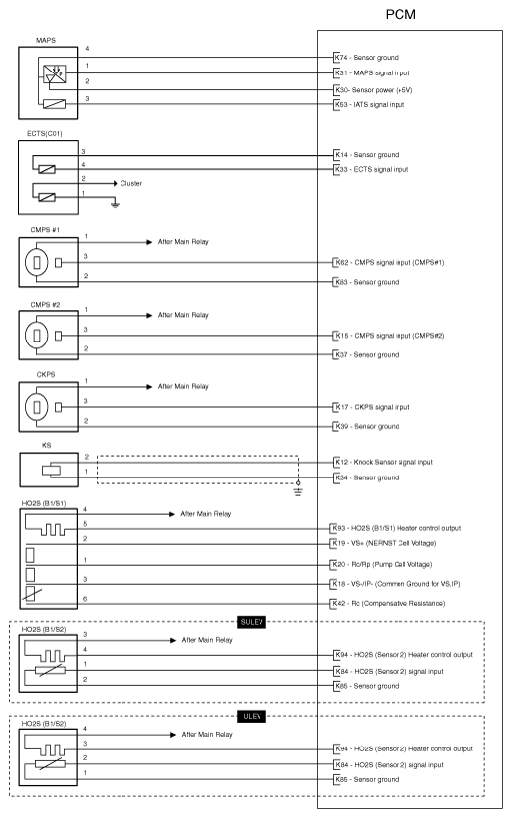

Fig 3: PCM Harness Connector Circuit Diagram (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

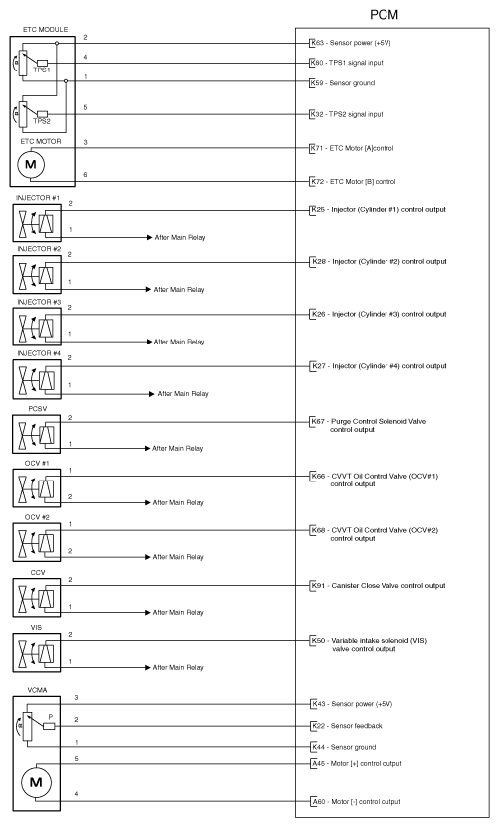

Fig 4: PCM Harness Connector Circuit Diagram (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 5: PCM Harness Connector Circuit Diagram (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
