Kia
›
2009
›
Rondo EX, 2.4 8
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
SRS Control Module
›
SRS Control Module (SRSCM)
›
Description & Operation
›
Circuit Diagram
Circuit Diagram

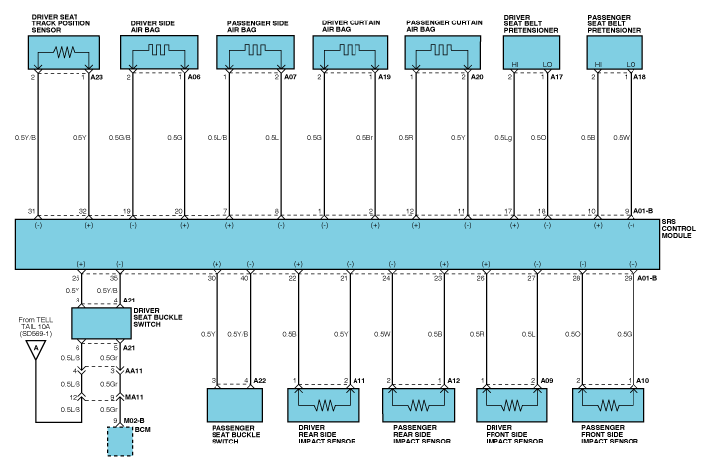

Fig 1: SRS Control Module Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

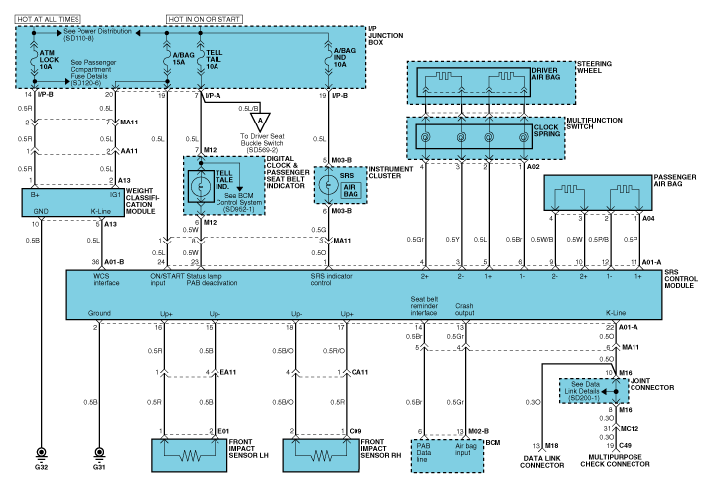

Fig 2: SRS Control Module Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
