Engine Mounting: Components

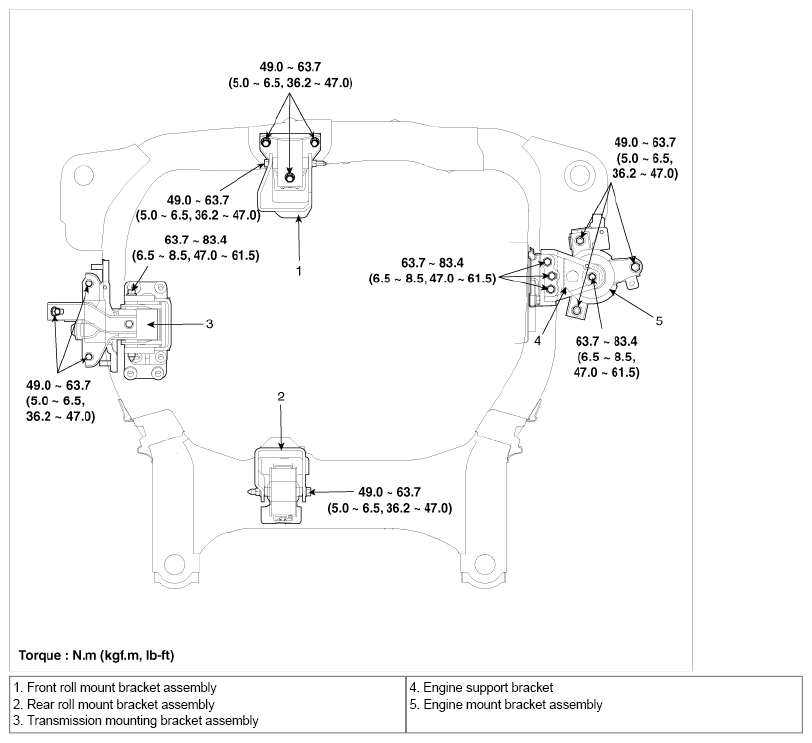

Fig 1: Identifying Engine Mounting Components
G06385810Courtesy of KIA MOTORS AMERICA, INC.
