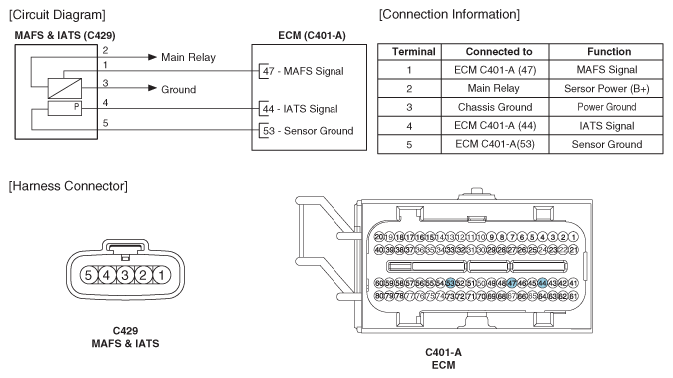

Home › Kia › 2009 › Rondo EX, 2.7 4 › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.7L › Mass Air Flow Sensor (MAFS) › Schematic Diagrams › Circuit Diagram
