Home › Kia › 2009 › Sedona Base › Repair and Diagnosis › Body & Frame › Seats › Seat › Front Seat › Components

Front Seat: Components

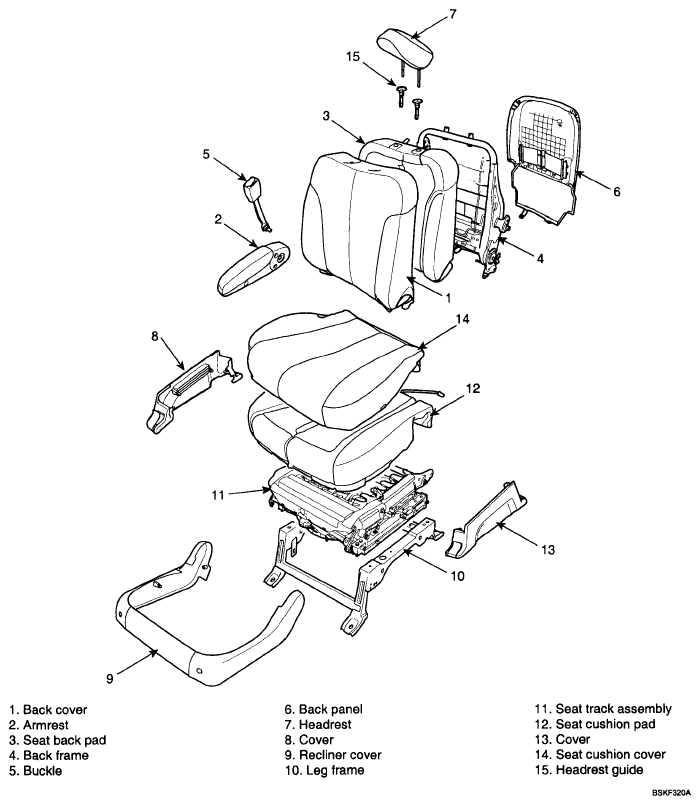

Fig 1: Identifying Front Seat Components
G04884136Courtesy of KIA MOTORS AMERICA, INC.
