Seat Assembly Replacement

  1. Remove the seat assembly mounting cover.
  2. After loosening the seat assembly mounting bolts, remove the seat assembly (A).
    Fig 1: Seat Assembly Mounting Bolts Location With Torque Specifications
    G04884137Courtesy of KIA MOTORS AMERICA, INC.
  3. Open the connector box (A).
  4. Disconnect the connector (B), and remove the seat assembly.

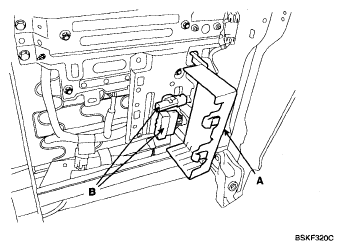

    Fig 2: Identifying Connector Box
    G04884138Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
    CAUTION: SEAT MOUNTING BOLT INSTALLATION PROCEDURE
    • Set into the most rearward position. Check then each slide is locked, and then Tighten the front mounting bolt temporarily.
    • Set the seat into most forward position. Check that each slide is locked, and then Tighten the rear mounting bolt completely.
    • Set the seat into the most rearward position. Check the front mounting bolt completely.
    • Check that the seat operates to and fro smoothy and the locking portion locks properly.
