C Pillar Trim Replacement

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the luggage trim. See LUGGAGE SIDE TRIM REPLACEMENT .
Remove the C pillar trim (A).

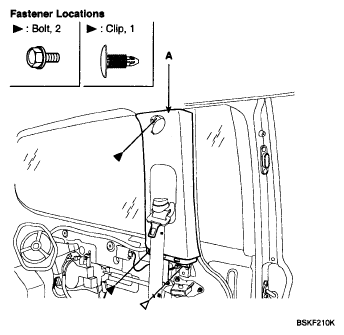

Fig 1: Identifying C Pillar Trim Fastener Locations
Courtesy of KIA MOTORS AMERICA, INC.
