ESC Circuit Diagrams

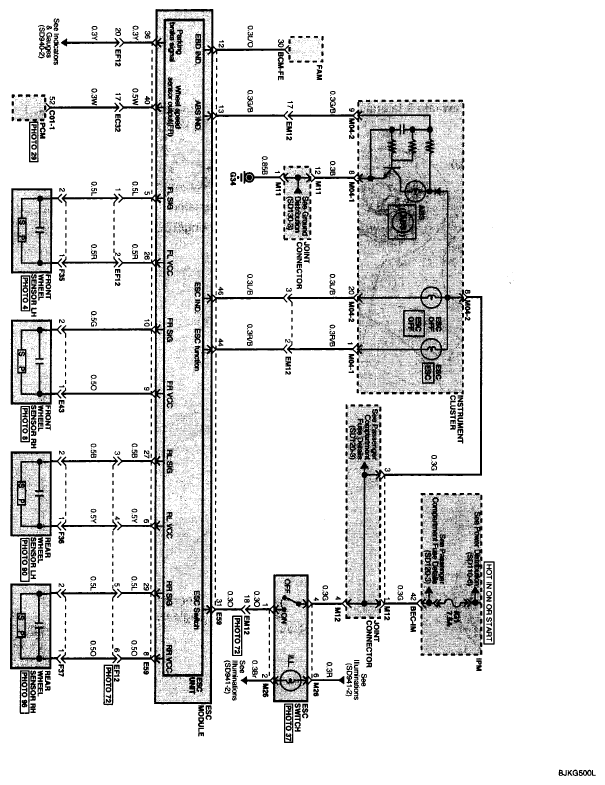

Fig 1: ESC Circuit Diagram (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

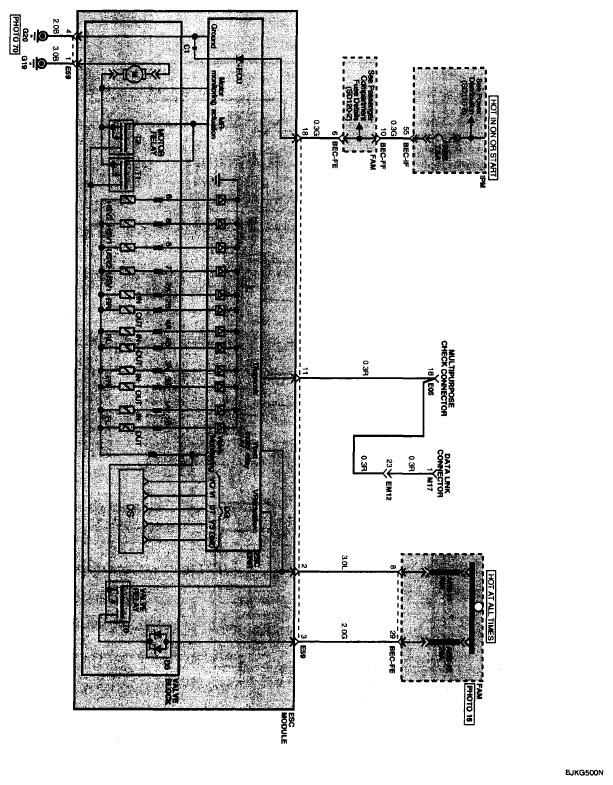

Fig 2: ESC Circuit Diagram (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

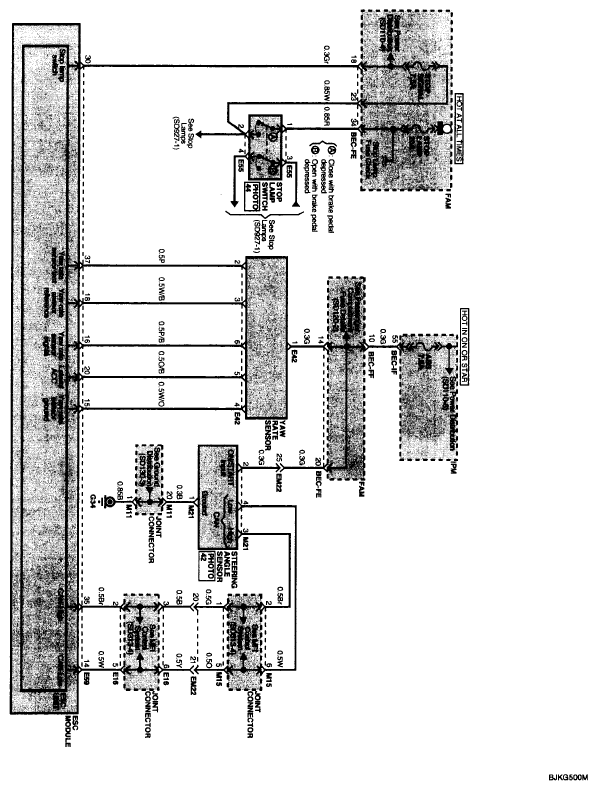

Fig 3: ESC Circuit Diagram (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
