Crankshaft Position Sensor (CKPS)
›
Description
›
Schematic Diagram
Schematic Diagram

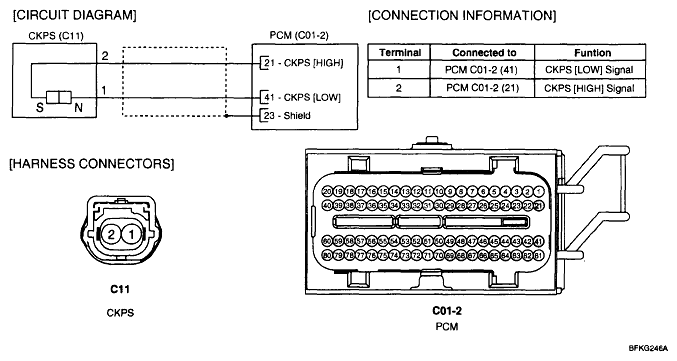

Fig 1: Crankshaft Position Sensor (CKPS) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
