Intake Air Temperature Sensor (IATS)
›
Description
›
Schematic Diagram
Schematic Diagram

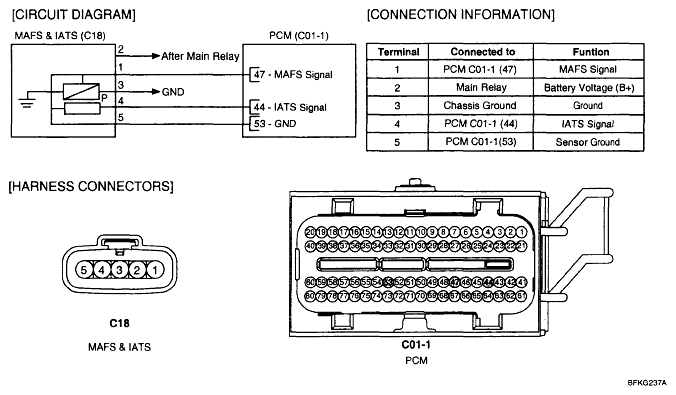

Fig 1: Mass Air Flow Sensor Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
