Purge Control Solenoid Valve (PCSV)
›
Description
›
Schematic Diagram
Schematic Diagram

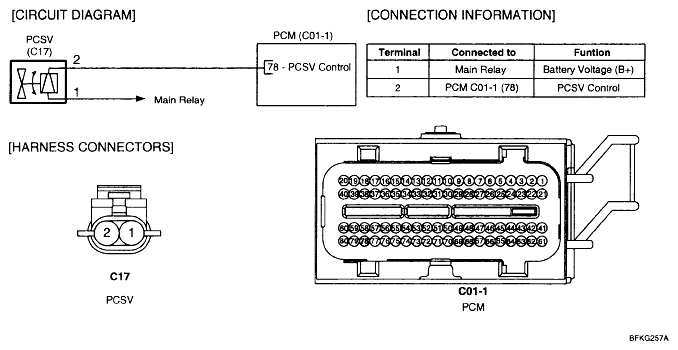

Fig 1: Purge Control Solenoid Valve (PCSV) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
