Home › Kia › 2009 › Sorento Base, A5SR1 › Repair and Diagnosis › Engine Mechanical › Lubrication System › Components and Components Location › Components

Components and Components Location: Components

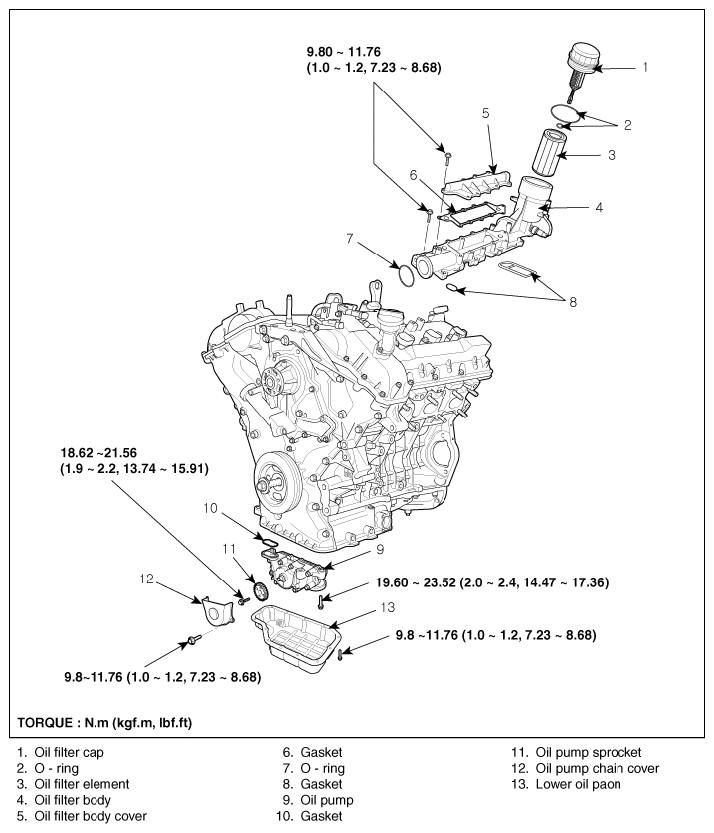

Fig 1: Identifying Lubrication System Components
G06407836Courtesy of KIA MOTORS AMERICA, INC.
