P0134: O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1)
›
Schematic Diagram
Schematic Diagram

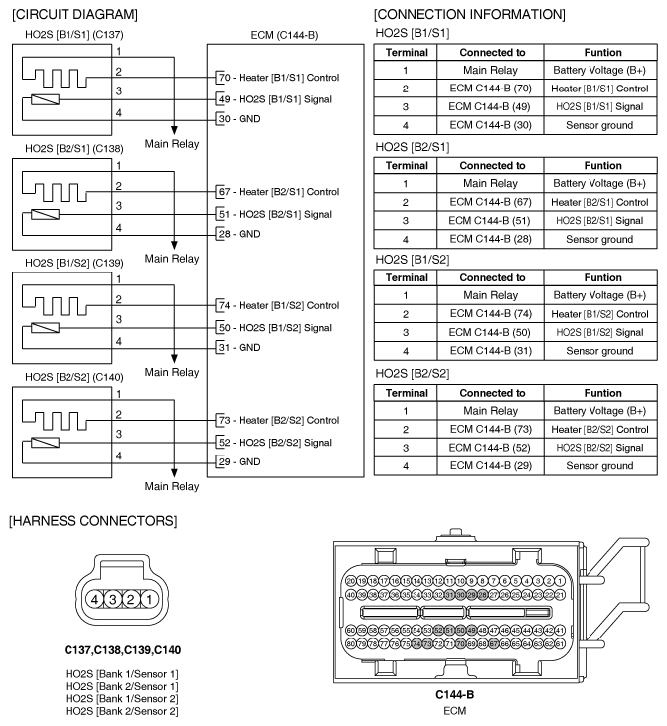

Fig 1: O2 Sensor Circuit No Activity Detected (Bank 1/Sensor 1) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
