Sorento Base, A5SR1
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
SRS Control Module (Air Bag)
›
Troubleshooting
›
Description
›
Diagnostic Troubleshooting Flow
Diagnostic Troubleshooting Flow

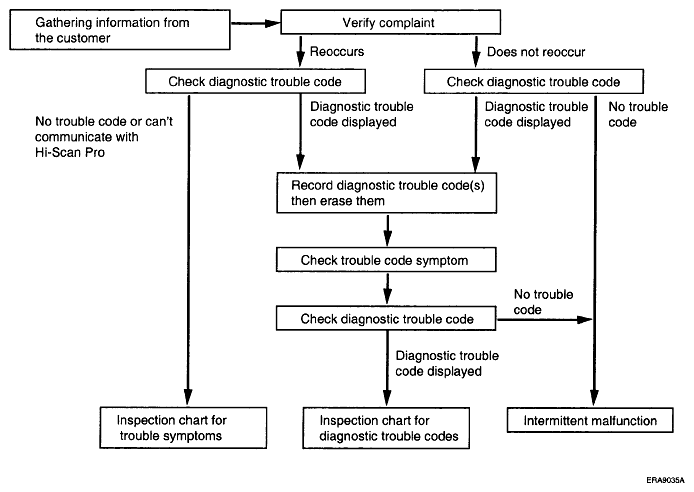

Fig 1: Diagnostic Troubleshooting Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
