Schematic Diagram
Schematic Diagram

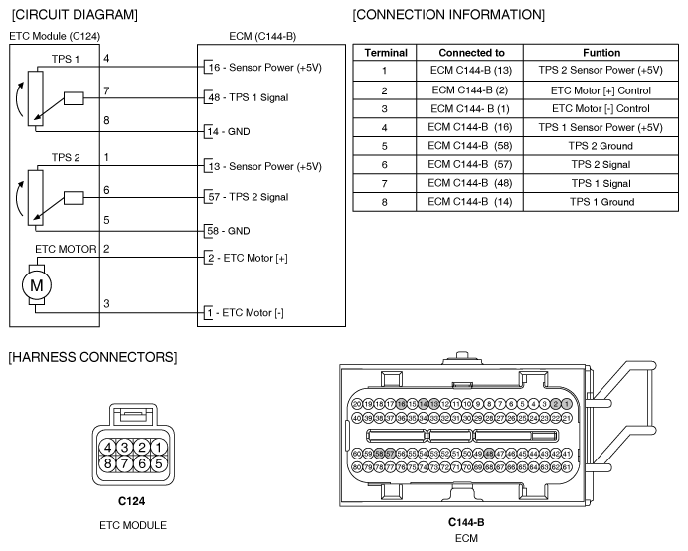

Fig 1: Electronic Throttle System (ETS) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
