Fuel Tank Pressure Sensor (FTPS)
›
Repair Procedures
›
Inspection
›
Schematic Diagram
Schematic Diagram

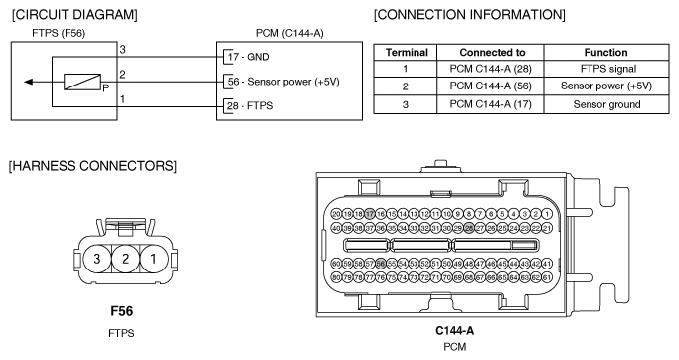

Fig 1: Fuel Tank Pressure Sensor (FTPS) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
