Heated Oxygen Sensor (HO2S)
›
Repair Procedures
›
Inspection
›
Schematic Diagram
Schematic Diagram

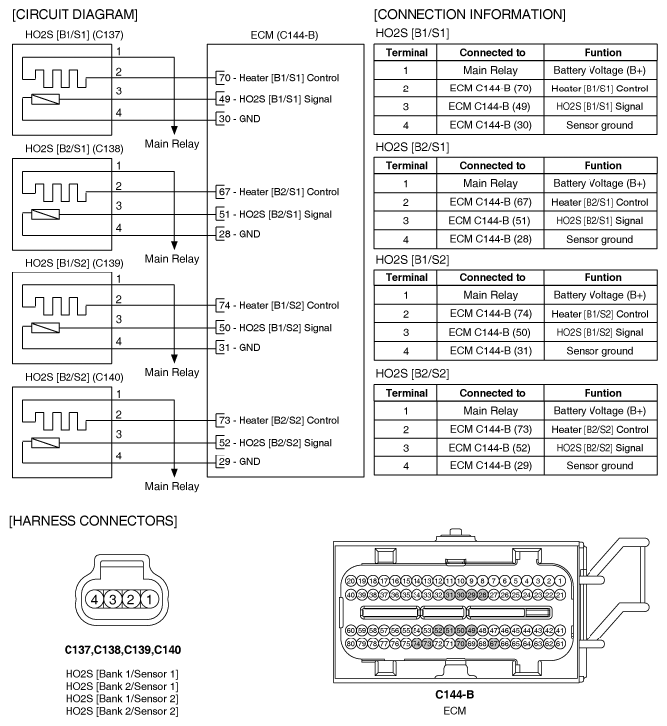

Fig 1: Heated Oxygen Sensor (HO2S) Schematic Diagram
