Schematic Diagram
Schematic Diagram

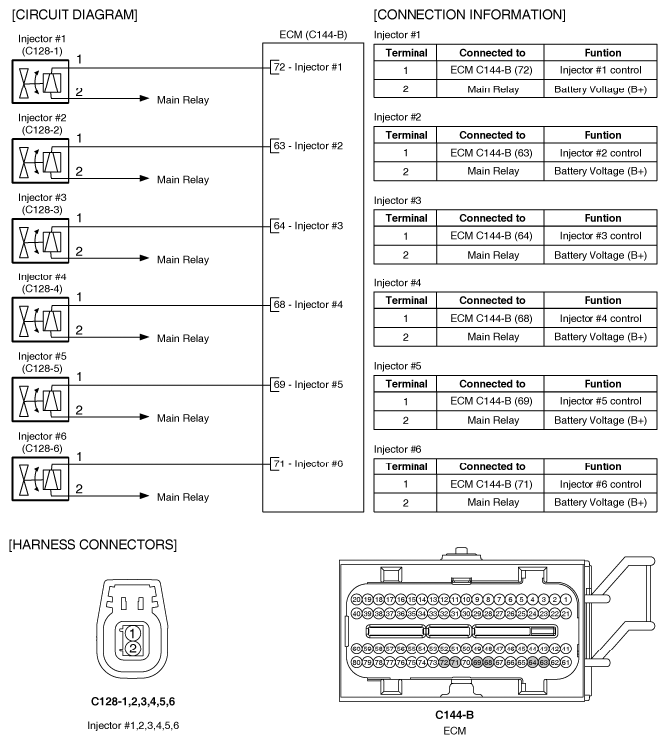

Fig 1: Fuel Injector Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
