Kia
›
2009
›
Sorento Base, A5SR2
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Manifold Absolute Pressure Sensor (MAPS)
›
Repair Procedures
›
Inspection
›
Schematic Diagram
Schematic Diagram

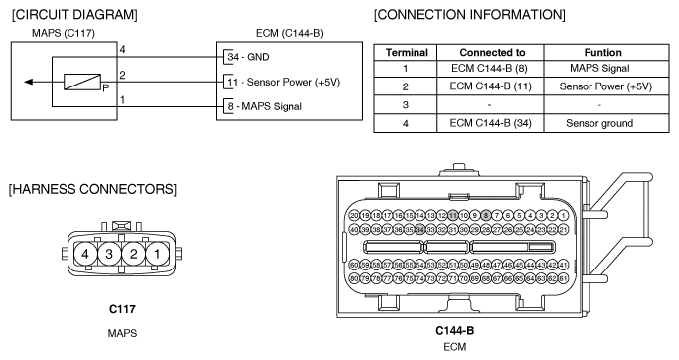

Fig 1: Manifold Absolute Pressure Sensor (MAPS) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
