Mass Air Flow Sensor (MAFS)
›
Repair Procedures
›
Inspection
›
Schematic Diagram
Schematic Diagram

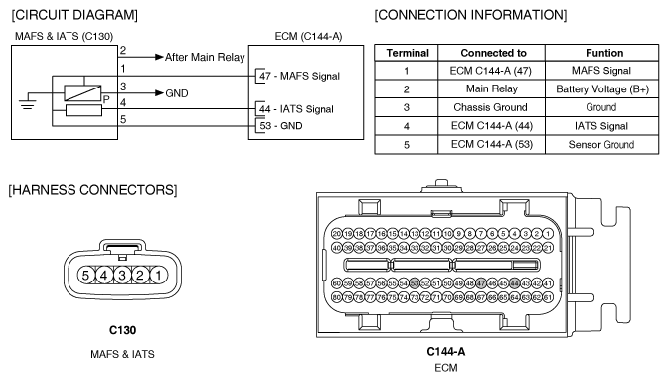

Fig 1: Mass Air Flow Sensor (MAFS) Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
