Variable Intake Solenoid (VIS) Valve
›
Repair Procedures
›
Inspection
›
Schematic Diagram
Schematic Diagram

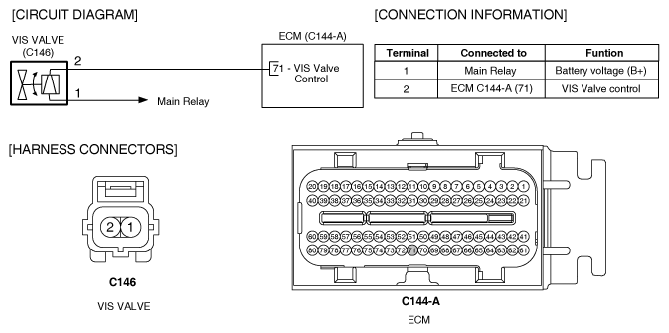

Fig 1: Variable Intake Solenoid (VIS) Valve Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
