DTC Troubleshooting Procedures (1 Of 3)
›
P0133: O2 Sensor Circuit Slow Response (Bank 1/Sensor 1)
›
Schematic Diagram
Schematic Diagram

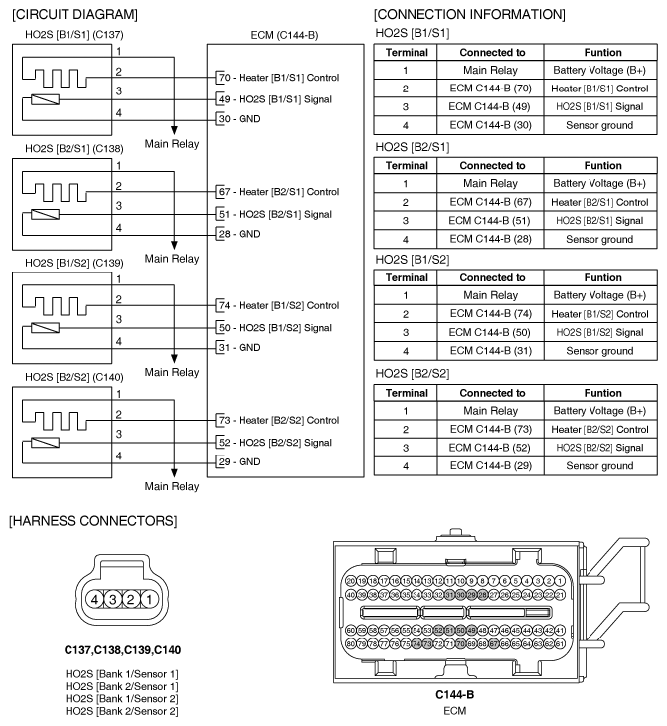

Fig 1: O2 Sensor Circuit Slow Response (Bank 1/Sensor 1) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
