P0140: O2 Sensor Circuit Slow Response (Bank 1/Sensor 2)
›
Schematic Diagram
Schematic Diagram

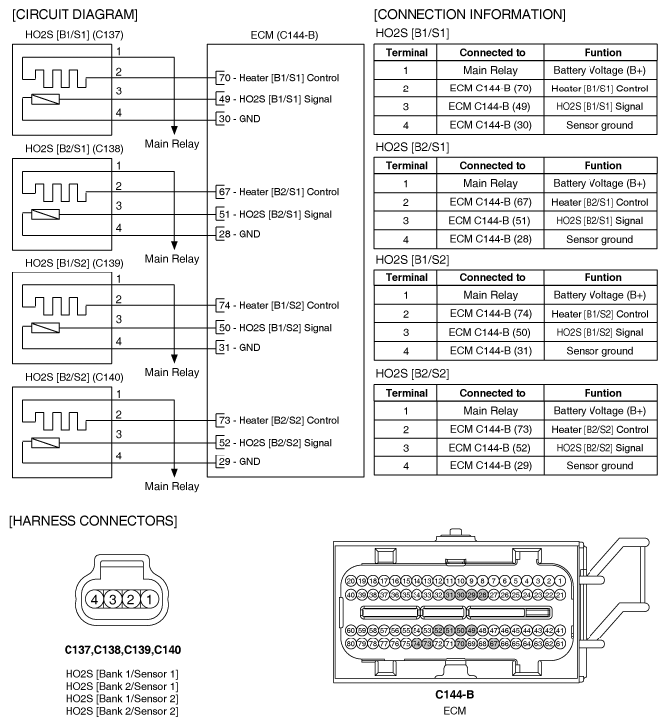

Fig 1: O2 Sensor Circuit Slow Response (Bank 1/Sensor 2) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
