Monitor DTC Status

Check DTC Status
1. Connect scan tool to Data Link Connector (DLC).
2. IG "ON".
3. Select "Diagnostic Trouble Codes (DTCs)" mode, and then Press F5(INFO) to check DTC's information from the DTCs menu.
4. Read "DTC Status" parameter.

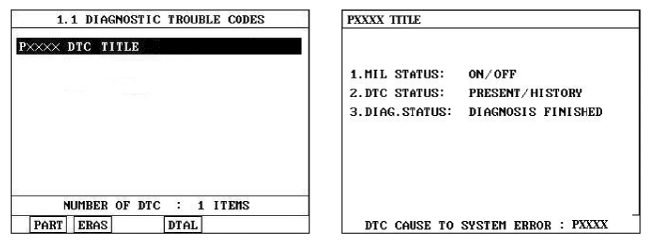

  Fig 1: Screen Display - DTC Title
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is "Present" Fault displayed?
  YES
  - Go to "Inspection & Repair" procedure.
  NO
  - Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
