P0160: O2 Sensor Circuit No Activity Detected (Bank 2/Sensor 2)
›
Schematic Diagram
Schematic Diagram

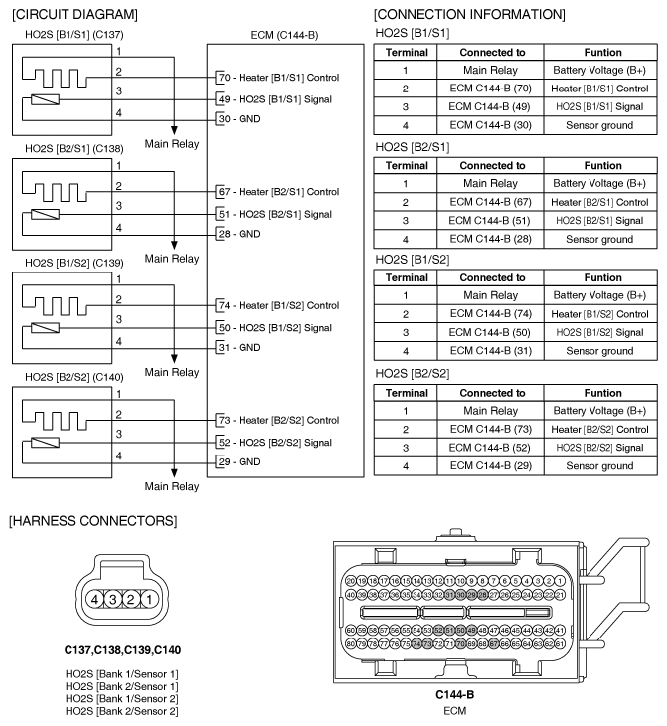

Fig 1: O2 Sensor Circuit No Activity Detected (Bank 2/Sensor 2) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
