Kia
›
2009
›
Sorento Base, A5SR2
›
Repair and Diagnosis
›
Engine Performance
›
System
›
DTC Troubleshooting Procedures (3 Of 3)
›
P2197: O2 Sensor Signal Stuck Lean (Bank 2 Sensor 1)
›
Schematic Diagram
Schematic Diagram

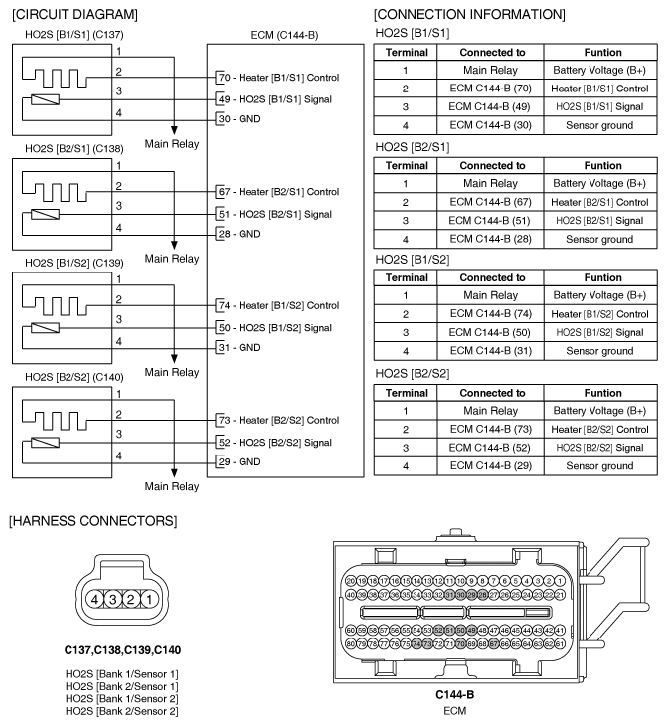

Fig 1: O2 Sensor Signal Stuck Lean (Bank 2 Sensor 1) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
