DTC Troubleshooting Procedures (3 Of 3)
›
P2198: O2 Sensor Signal Stuck Rich (Bank 2 Sensor 1)
›
Schematic Diagram
Schematic Diagram

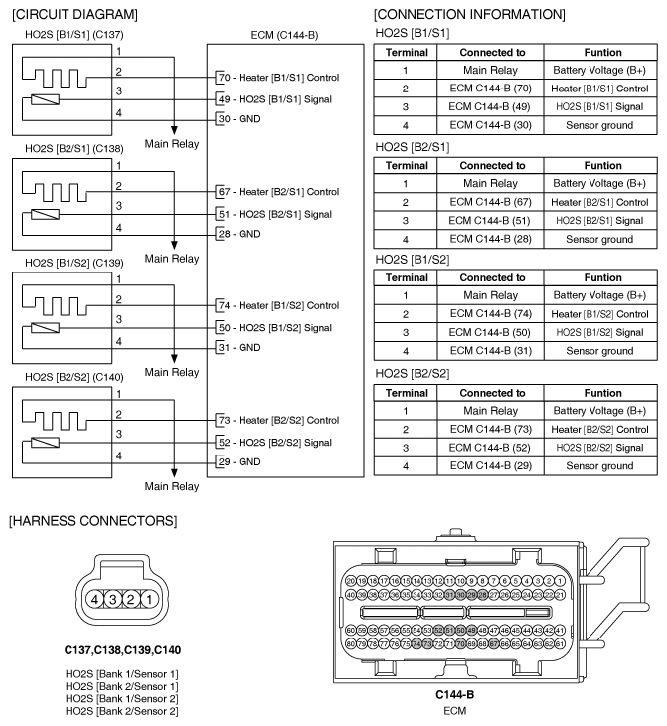

Fig 1: O2 Sensor Signal Stuck Rich (Bank 2 Sensor 1) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
