Sorento Base, A5SR2
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
SRS Control Module (Air Bag)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

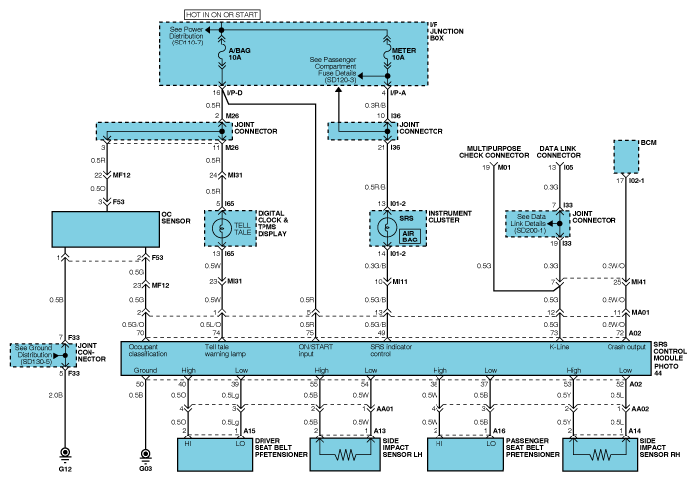

Fig 1: Occupant Classification Sensor - Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

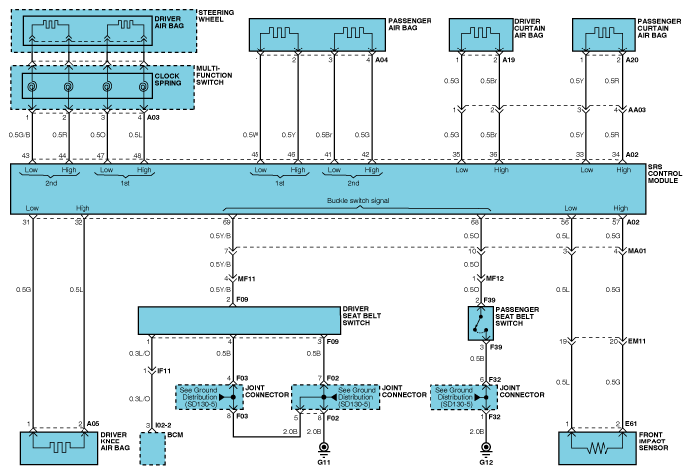

Fig 2: Occupant Classification Sensor - Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
