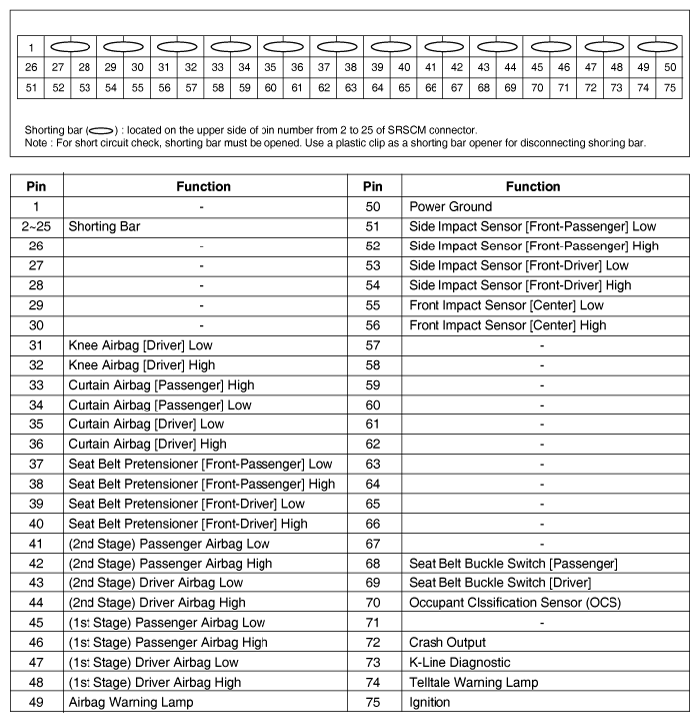

Home › Kia › 2009 › Sorento Base, A5SR2 › Repair and Diagnosis › Restraints › Restraints Control Systems › SRS Control Module (Air Bag) › Schematic Diagrams › SRSCM Connector Terminals › SRSCM Harness Connector
