B1409: SIS front-Driver communication error
›
Schematic Diagrams
Schematic Diagrams

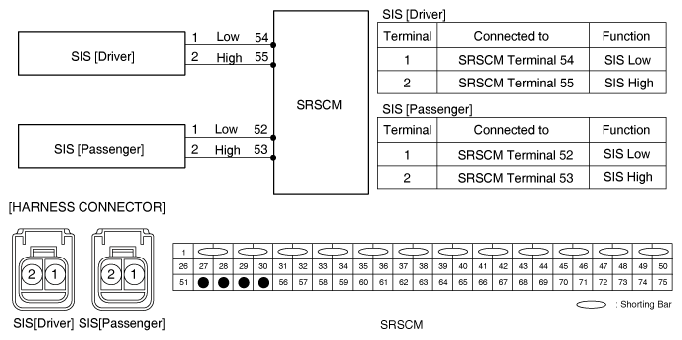

Fig 1: Detecting System For Side Crash - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
