B1447: OC Passenger ECU Defect
›
Schematic Diagrams
Schematic Diagrams

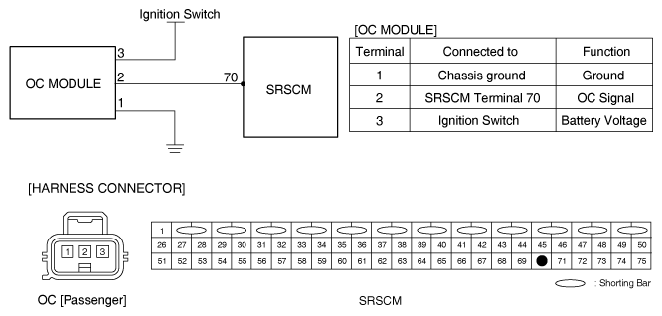

Fig 1: Passenger Occupant Classification (OC) System - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
