Sorento Base, A5SR2
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
SRS Control Module (Air Bag)
›
Troubleshooting
›
B1517: Buckle Switch Driver instability
›
Schematic Diagrams
Schematic Diagrams

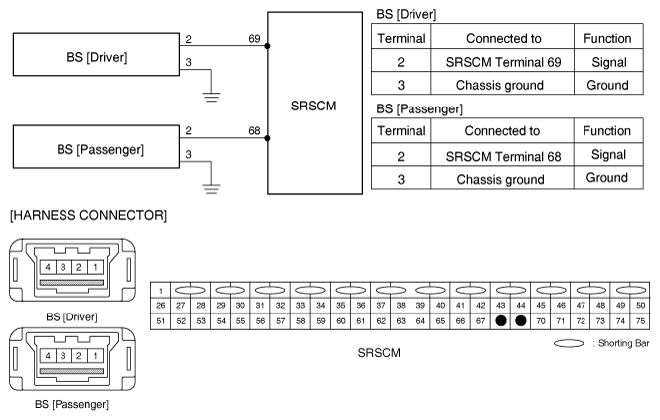

Fig 1: Seat Belt Buckle Switch (BS) - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
