Description And Operation (A5SR2): Components

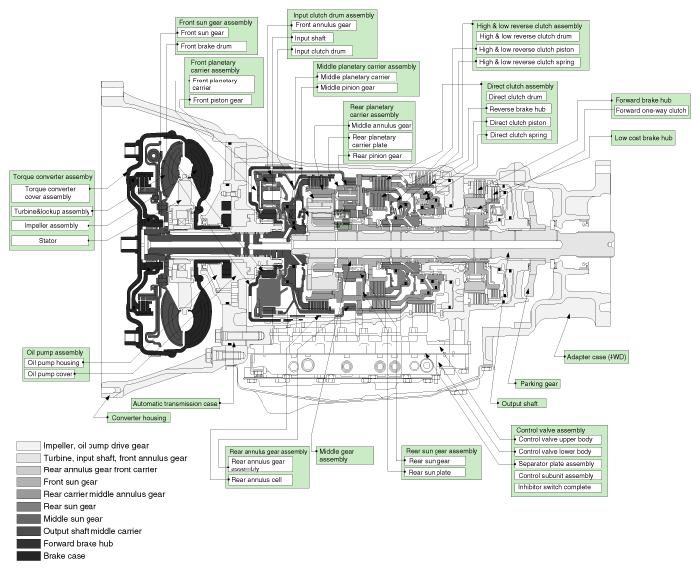

Fig 1: Identifying Automatic Transaxle System Components
G06409151Courtesy of KIA MOTORS AMERICA, INC.
