Components Location
Components Location

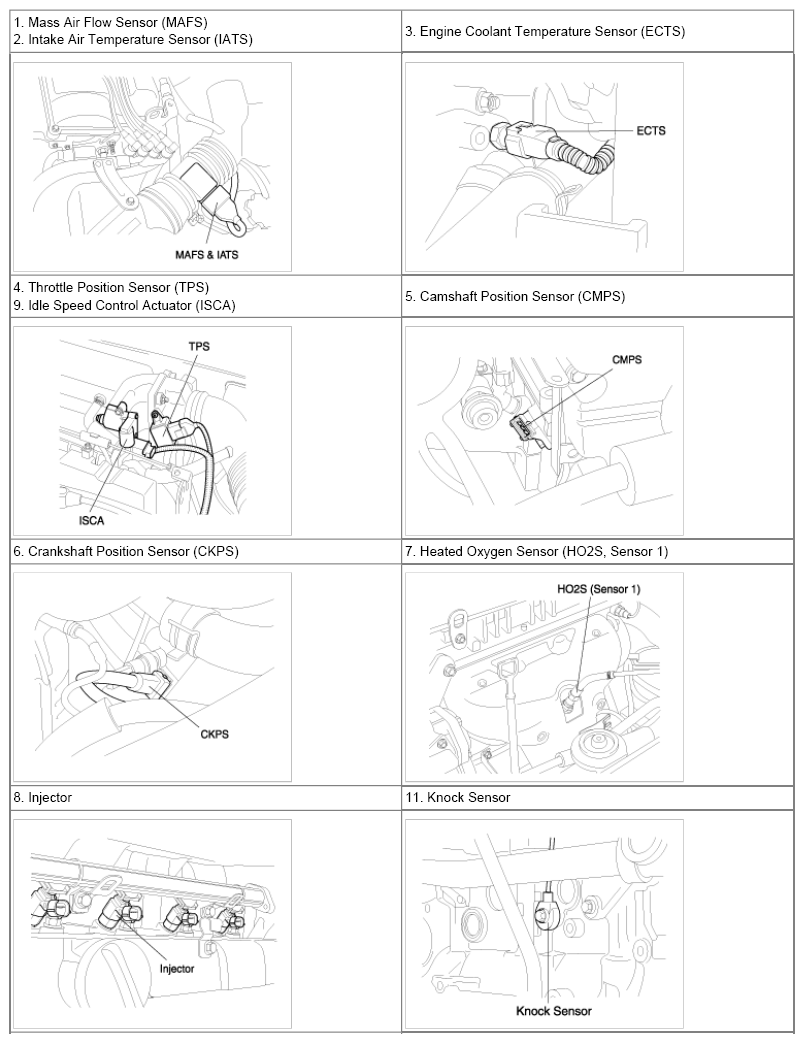

Fig 1: Identifying Mass Air Flow Sensor, Intake Air Temperature Sensor, Engine Coolant Temperature Sensor Components Location (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

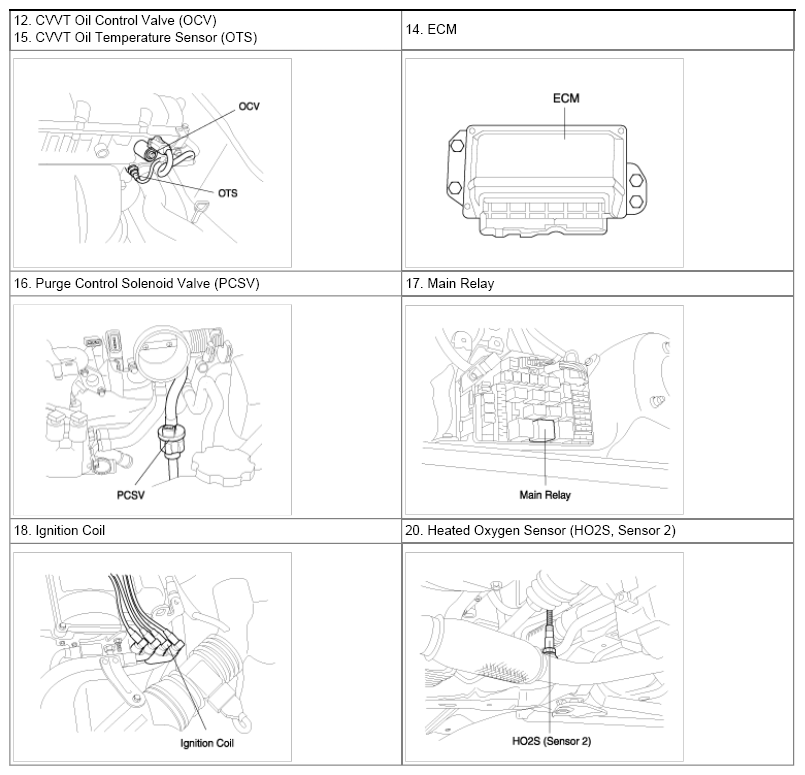

Fig 2: Identifying Mass Air Flow Sensor, Intake Air Temperature Sensor, Engine Coolant Temperature Sensor Components Location (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

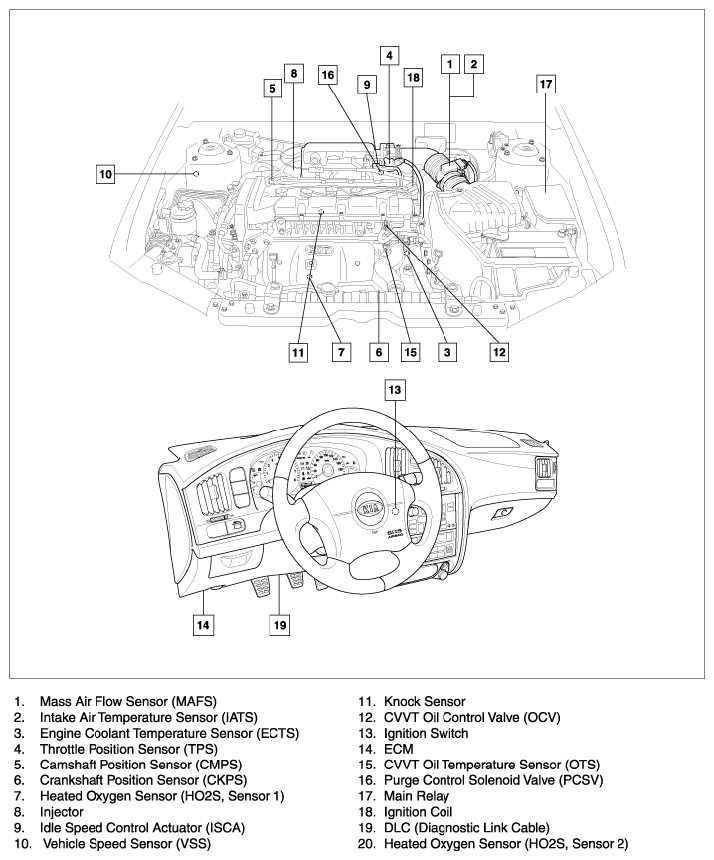

Fig 3: Identifying Mass Air Flow Sensor, Intake Air Temperature Sensor, Engine Coolant Temperature Sensor Components Location (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
