Kia
›
2009
›
Spectra EX, 2.0 2, Standard
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Gasoline Engine Control System
›
Engine Control Module (ECM)
›
Schematic Diagrams
Schematic Diagrams

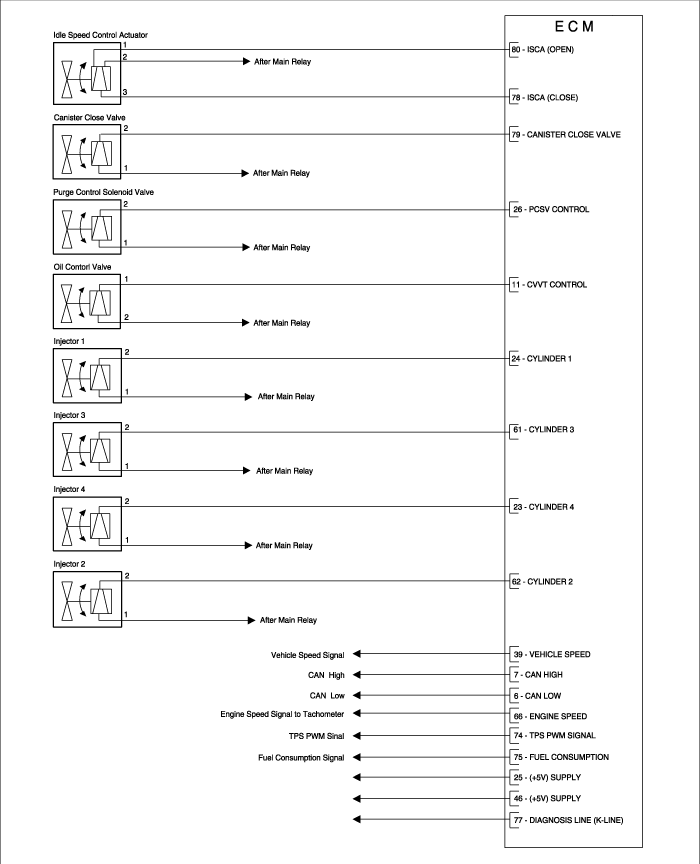

Fig 1: Engine Control Module - Circuit Diagram (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

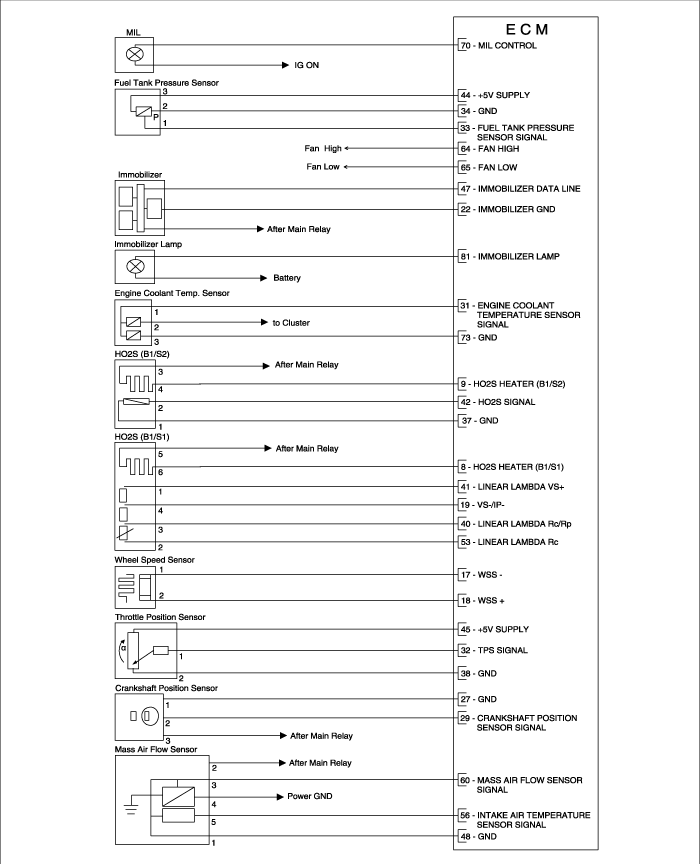

Fig 2: Engine Control Module - Circuit Diagram (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Engine Control Module - Circuit Diagram (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
