Removal & Installation: Alternator: Component

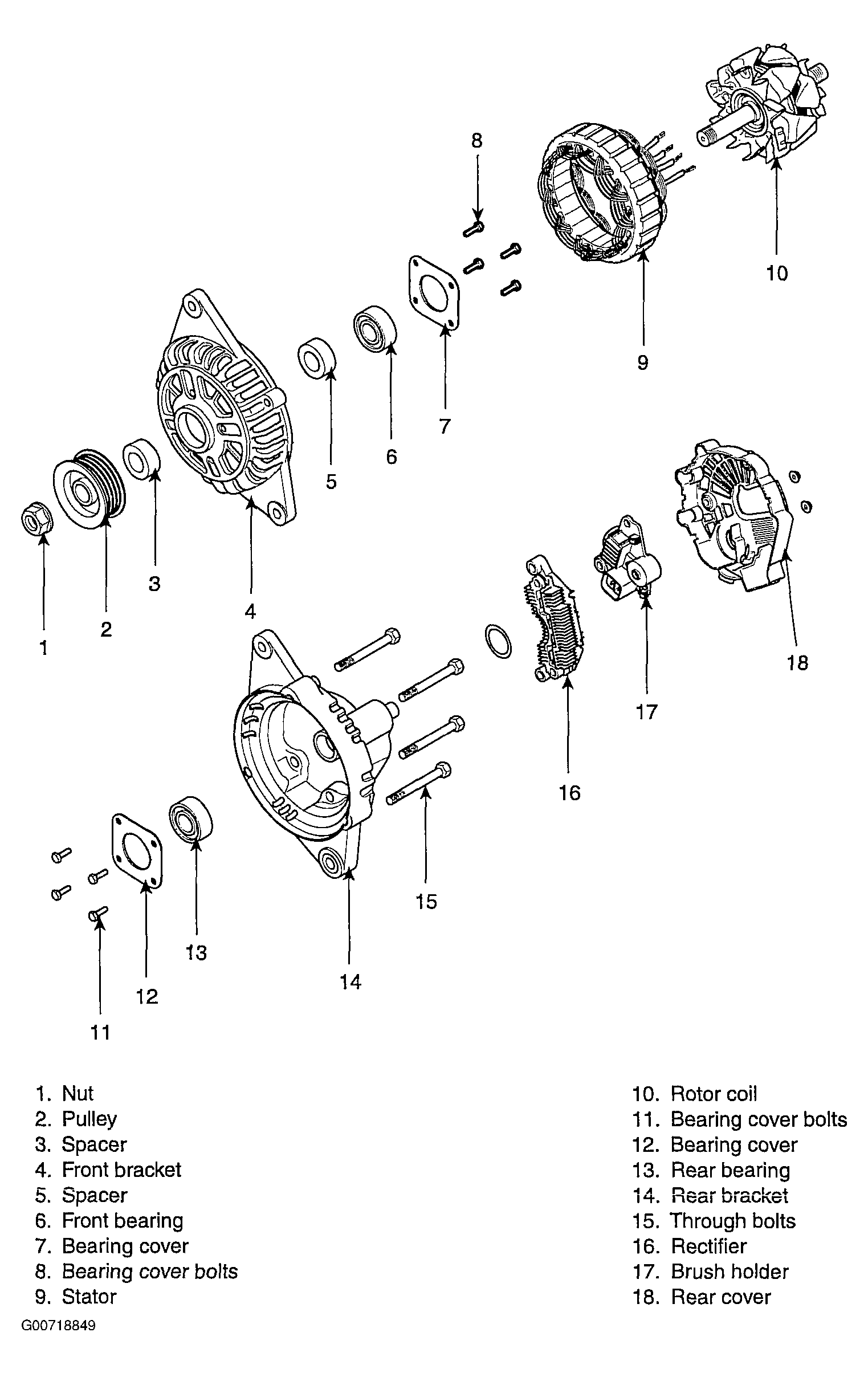

Fig 1: Exploded View Of Alternator
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
