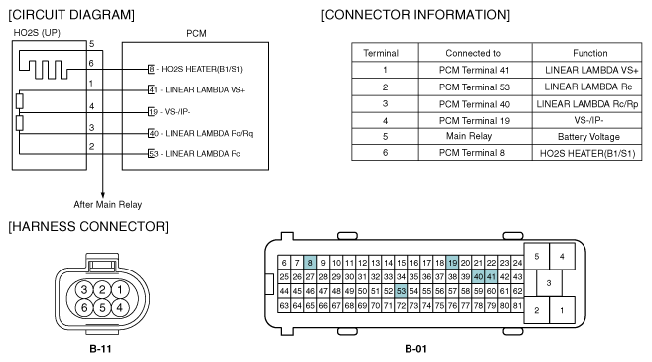

Home › Kia › 2009 › Spectra5 2.0 1, Standard › Repair and Diagnosis › Engine Performance › System › DTC Troubleshooting Procedures (2 Of 2) › P2237: O2 Sensor Pumping Current Circuit/Open (Bank 1 Sensor 1) › Schematic Diagram
