Wheel Speed Sensor
›
Components
Wheel Speed Sensor: Components

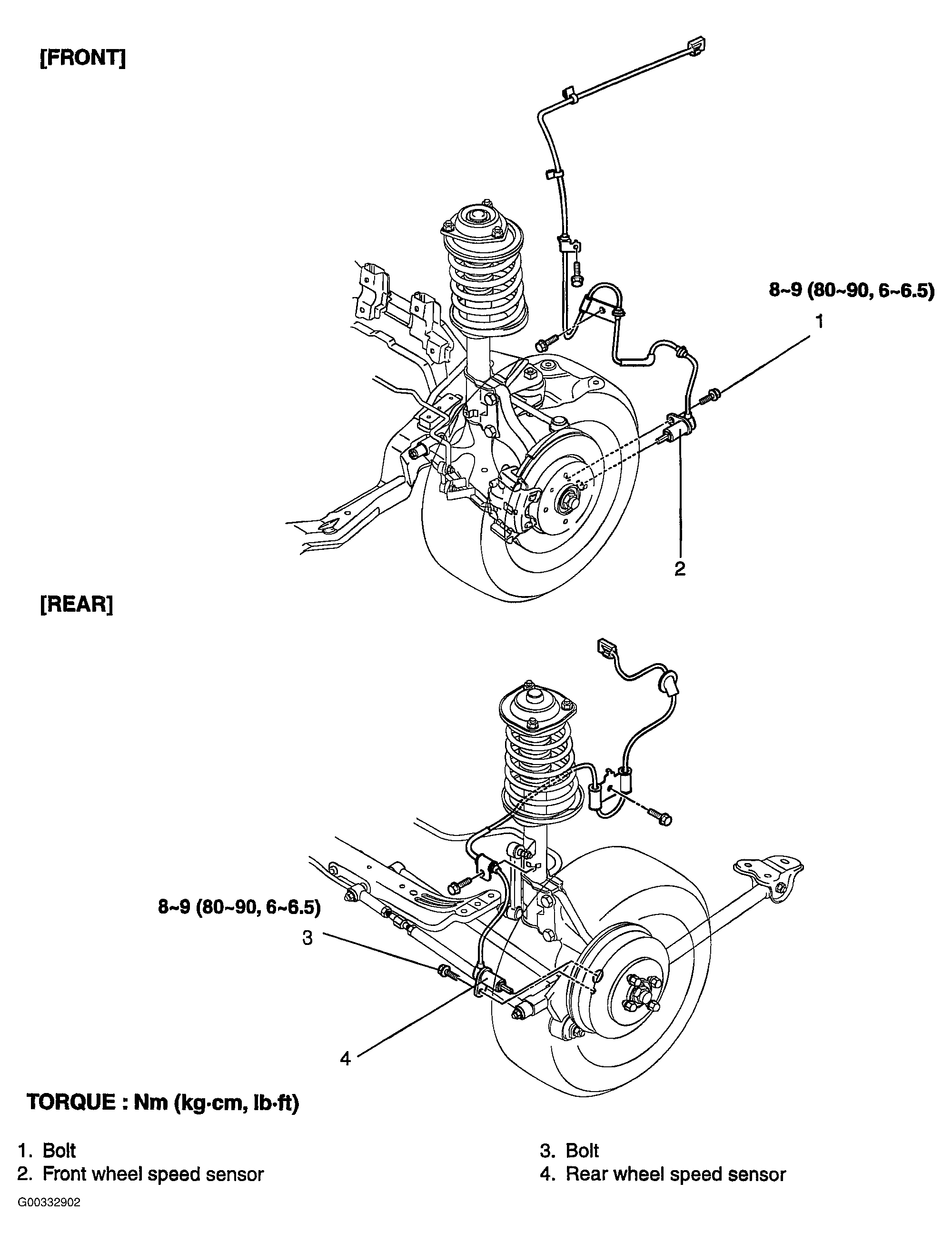

Fig 1: Wheel Speed Sensor Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
