Diagnostic Trouble Code Chart

Inspect according to the inspection chart that is appropriate for the malfunction code.

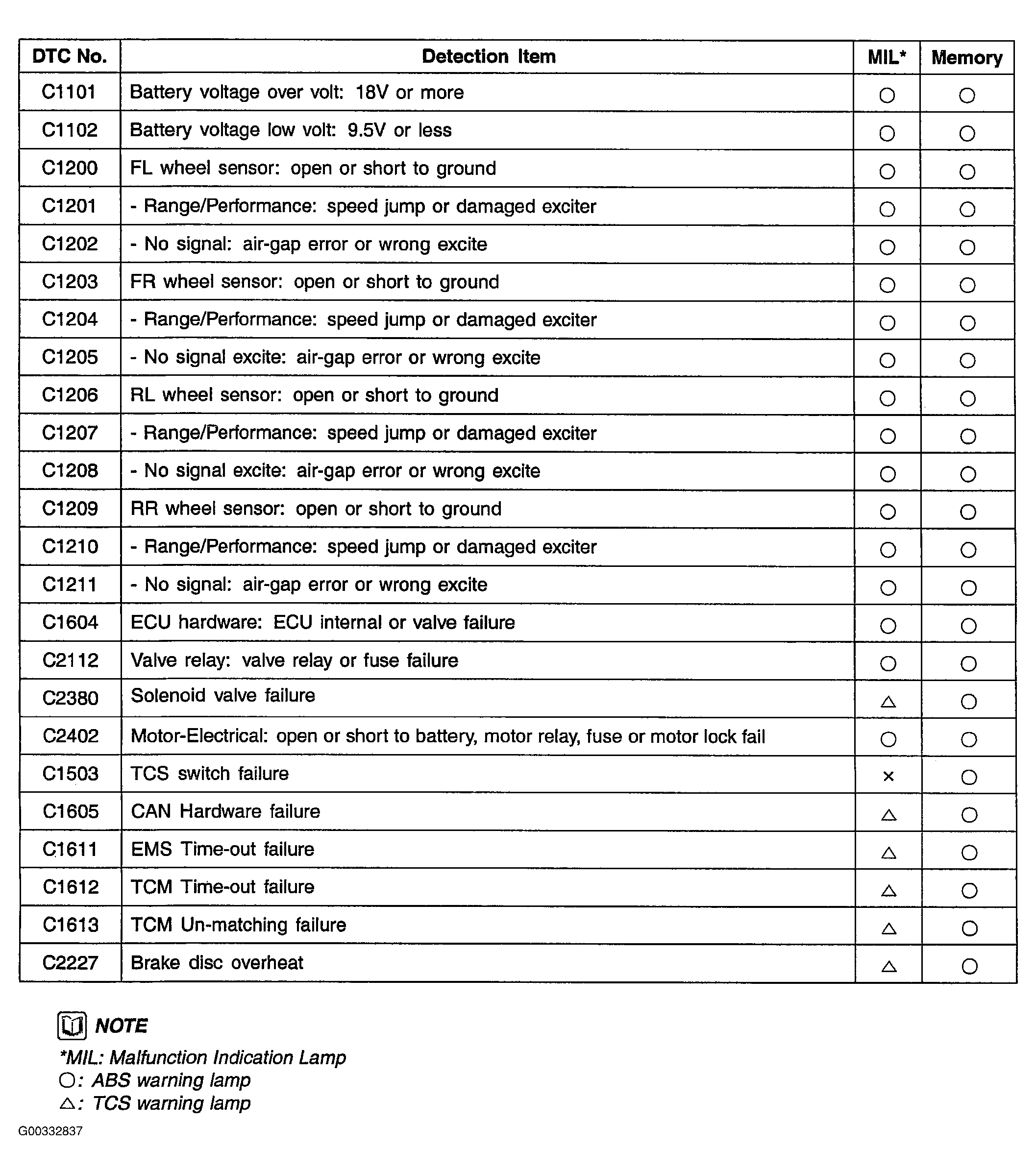

Fig 1: Diagnostic Trouble Code Identification Chart

Courtesy of KIA MOTORS AMERICA, INC.
