P0140: O2 Sensor Circuit No Activity Detected (Bank 1/Sensor 2)
›
Schematic Diagram
Schematic Diagram

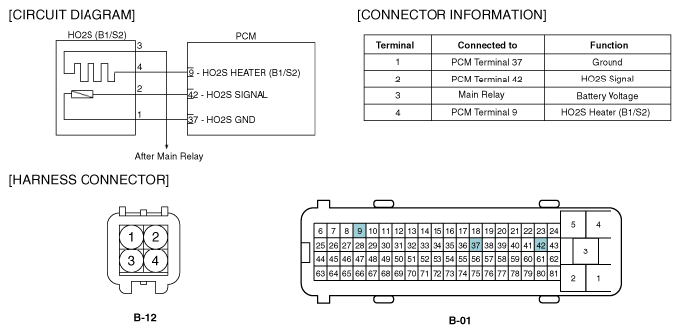

Fig 1: Rear Heated Oxygen Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
