Trunk Lid Switch

Disconnected negative (-) battery terminal.
Remove the trunk lid trim.
(For Coupe, refer to TRUNK LID . For Sedan, refer to TRUNK LID .)
Remove the trunk garnish (A).

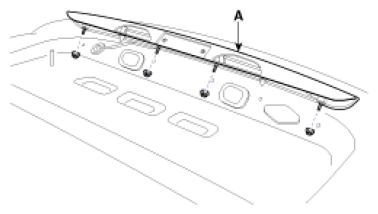

Fig 1: Identifying Trunk Garnish
Courtesy of KIA MOTORS AMERICA, INC.
Remove the trunk lid switch (A).

Fig 2: Identifying Trunk Lid Switch
Courtesy of KIA MOTORS AMERICA, INC.
