Home › Kia › 2010 › Forte EX, Automatic › Repair and Diagnosis › Body & Frame › Ignition Switch/Steering Lock › Button Engine Start System › Start Stop Button › Components and Components Locations › Component

Components and Components Locations: Component

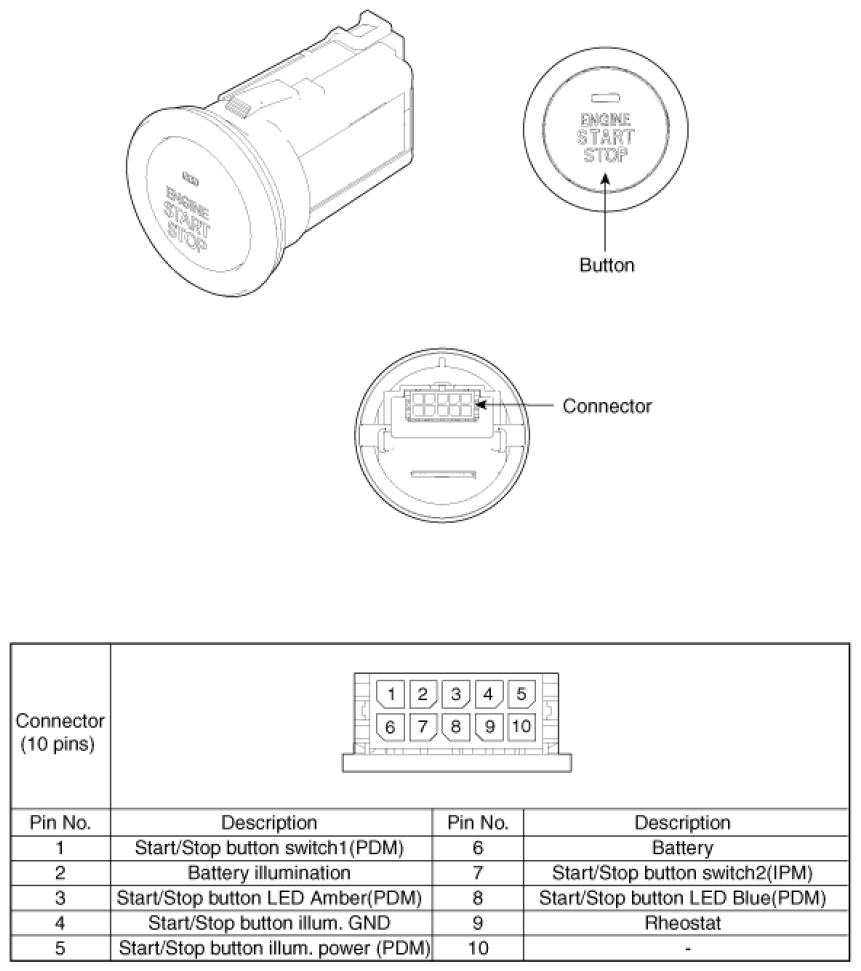

Fig 1: Identifying Start Stop Button, Connector, & Terminals
G06496487Courtesy of KIA MOTORS AMERICA, INC.
