Lower Panel Replacement

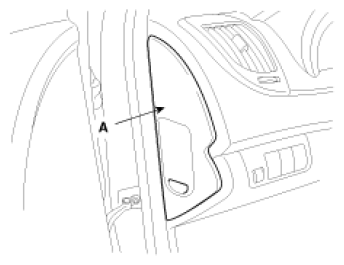

Remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of KIA MOTORS AMERICA, INC.

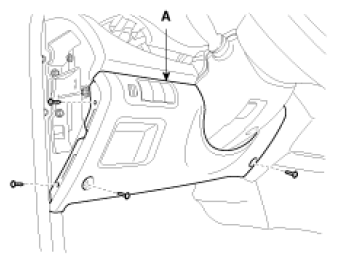

After loosening the crash pad lower panel mounting screws, then remove the lower panel (A).

Fig 2: Identifying Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.

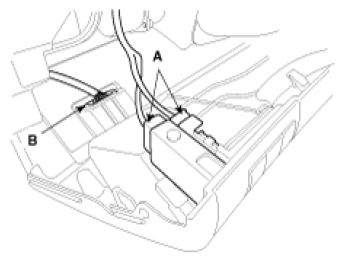

Disconnect the connector (A) and (B).

Fig 3: Identifying Connectors
Courtesy of KIA MOTORS AMERICA, INC.

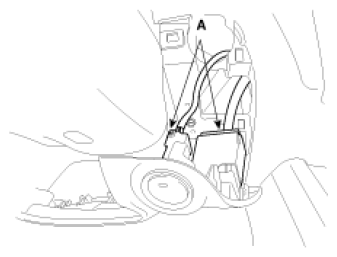

Disconnect the connectors (A).

Fig 4: Identifying Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
