Power Windows: Troubleshooting

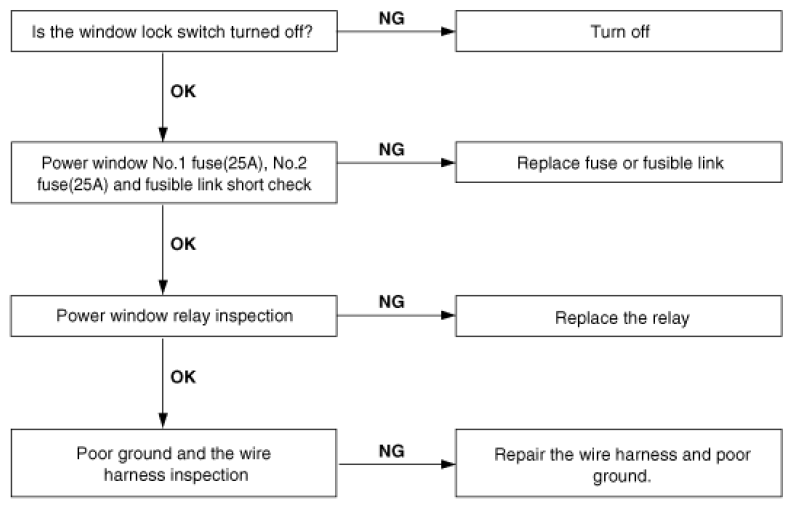

No windows operate from the main switch on the driver's door.
Fig 1: Troubleshooting Flow Chart (No Windows Operate From Main Switch On Driver's Door)
Courtesy of KIA MOTORS AMERICA, INC.

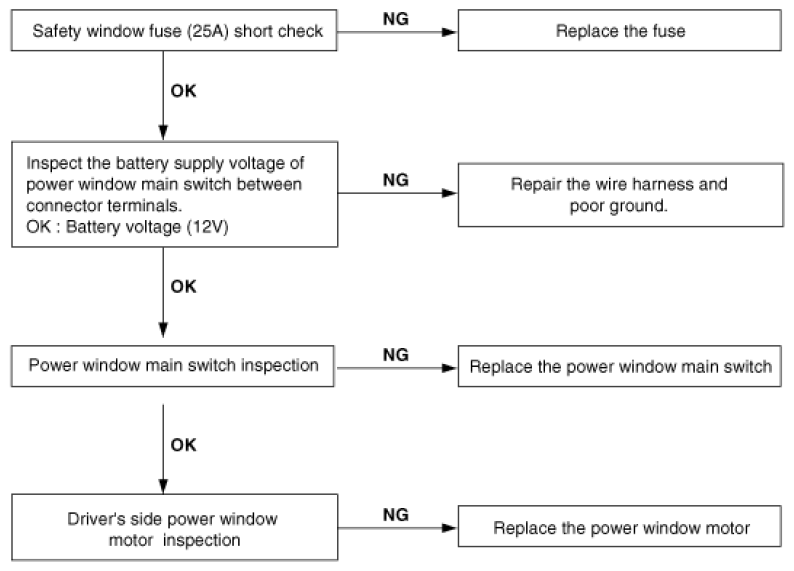

Driver's side window does not operate.
Fig 2: Troubleshooting Flow Chart (Driver's Side Window Does Not Operate)
Courtesy of KIA MOTORS AMERICA, INC.

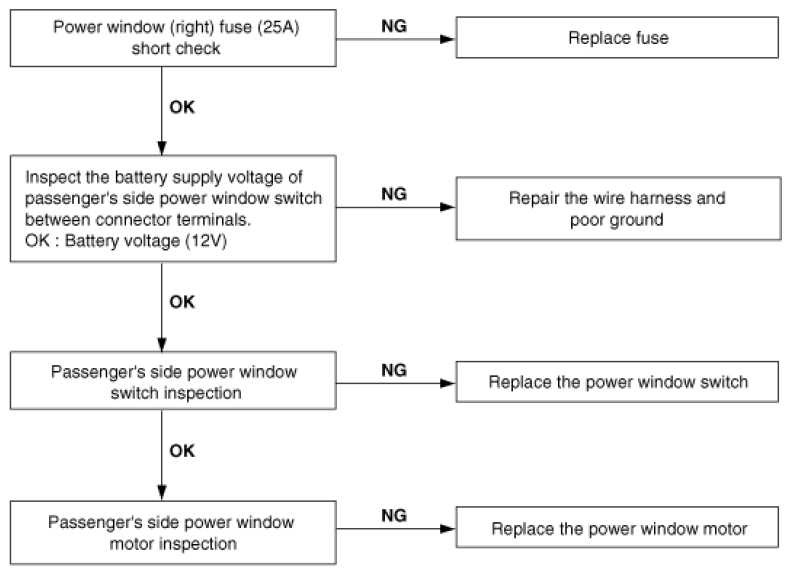

Passenger's side window does not operate.
Fig 3: Troubleshooting Flow Chart (Passenger's Side Window Does Not Operate)
Courtesy of KIA MOTORS AMERICA, INC.
