Component Location: Components

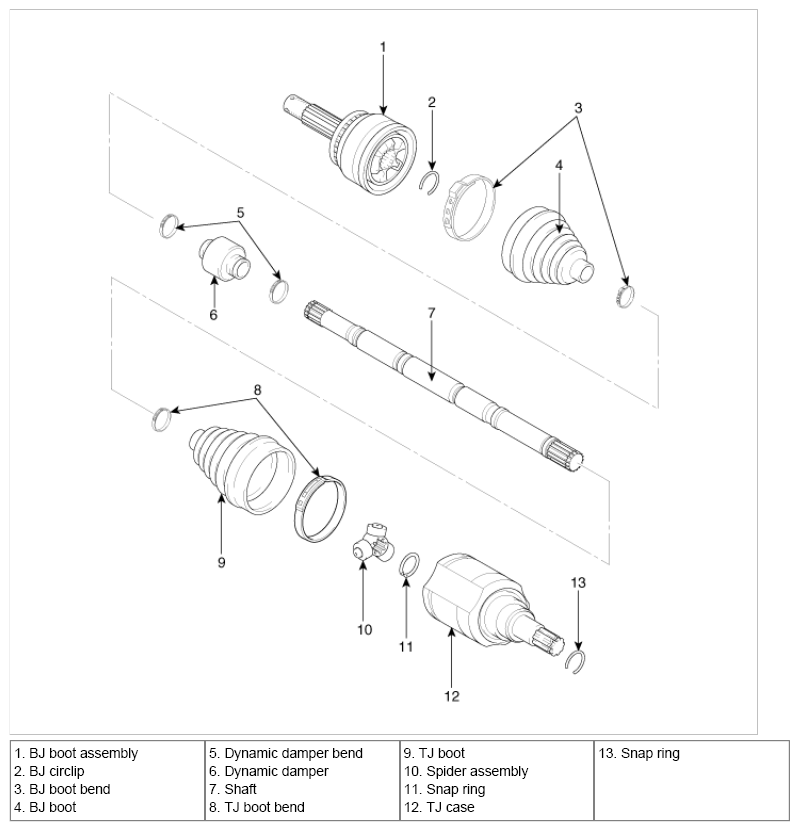

Fig 1: Identifying Front Driveshaft Components (2 Of 2)
G06495354Courtesy of KIA MOTORS AMERICA, INC.
