Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

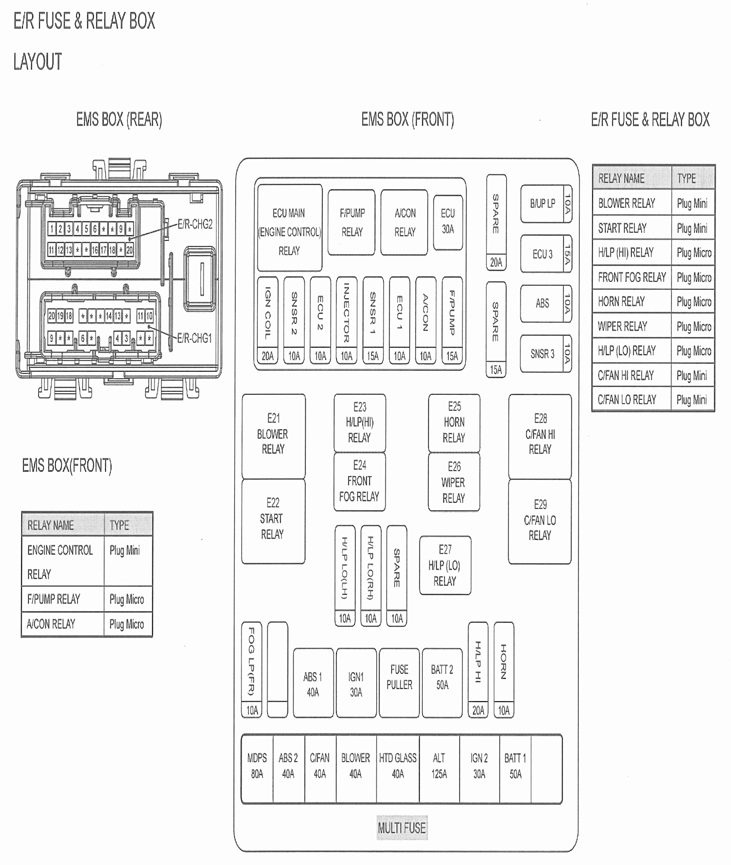

E/R Fuse & Relay Box Left rear of engine compartment. See Figure.

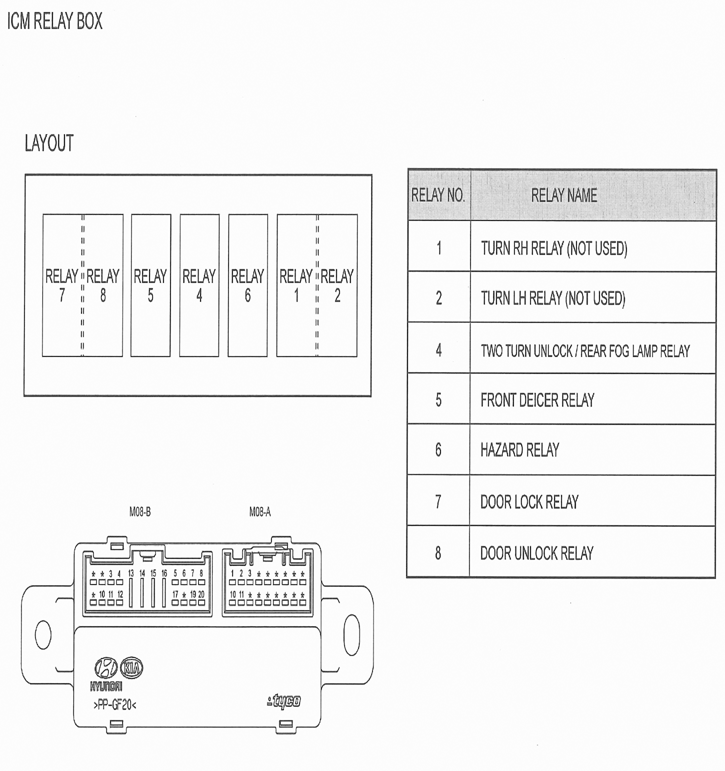

ICM Relay Box Dash center support. See Figure.

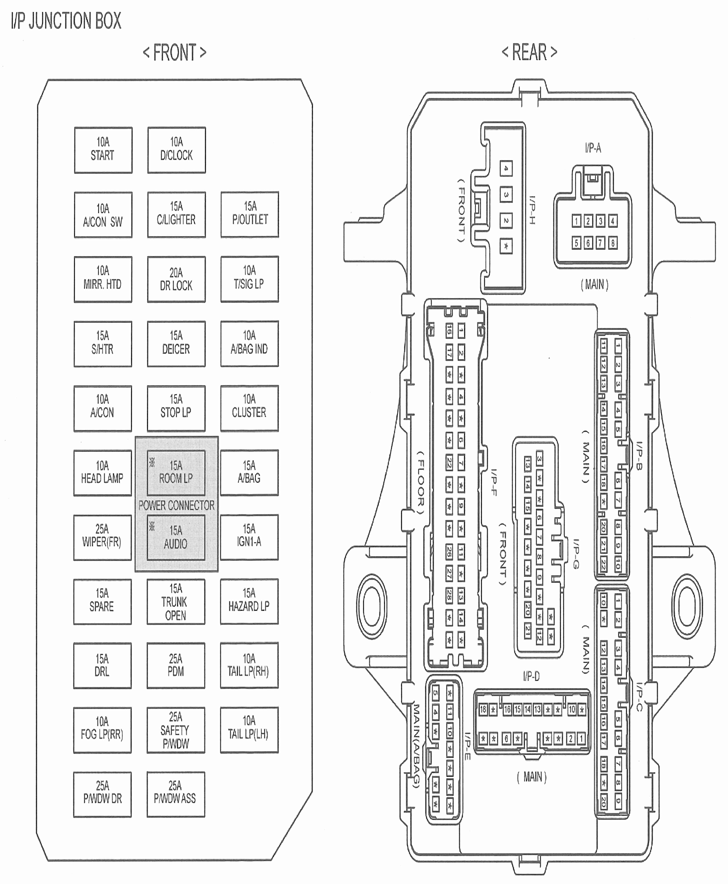

I/P Junction Box Left side of dash. See Figure.
