Circuit Diagram
Circuit Diagram

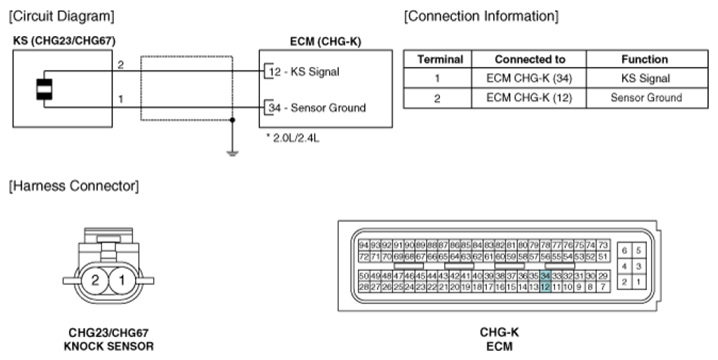

Fig 1: Knock Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
