Components and Components Location: Components(2)

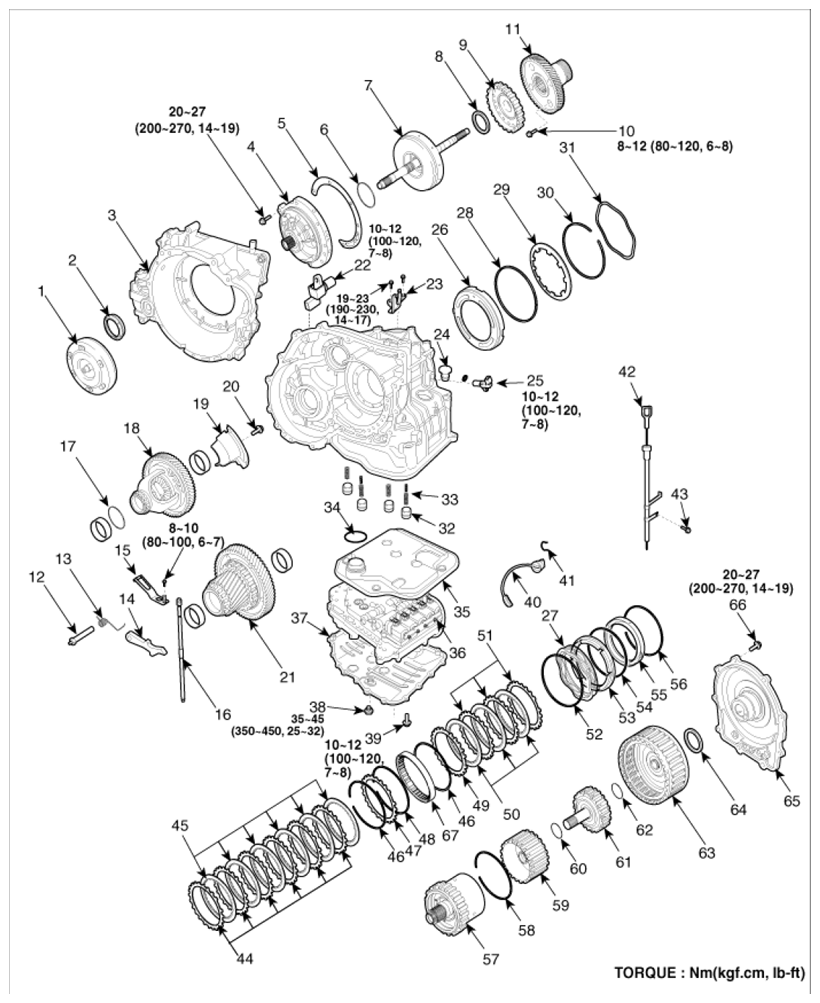

Fig 1: Exploded View Of Automatic Transaxle With Torque Specifications (1 Of 2)
G06798747Courtesy of KIA MOTORS AMERICA, INC.

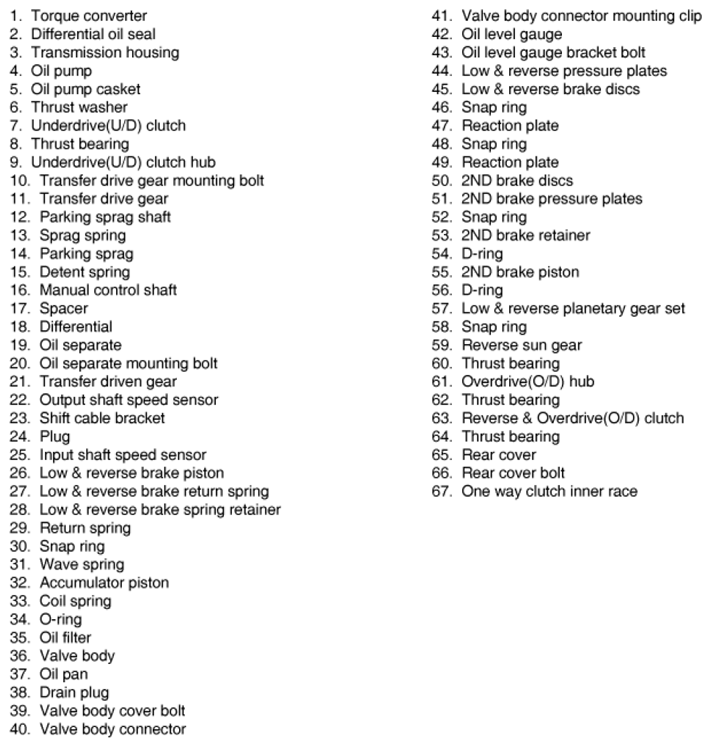

Fig 2: Exploded View Of Automatic Transaxle (2 Of 2)
G06798748Courtesy of KIA MOTORS AMERICA, INC.
